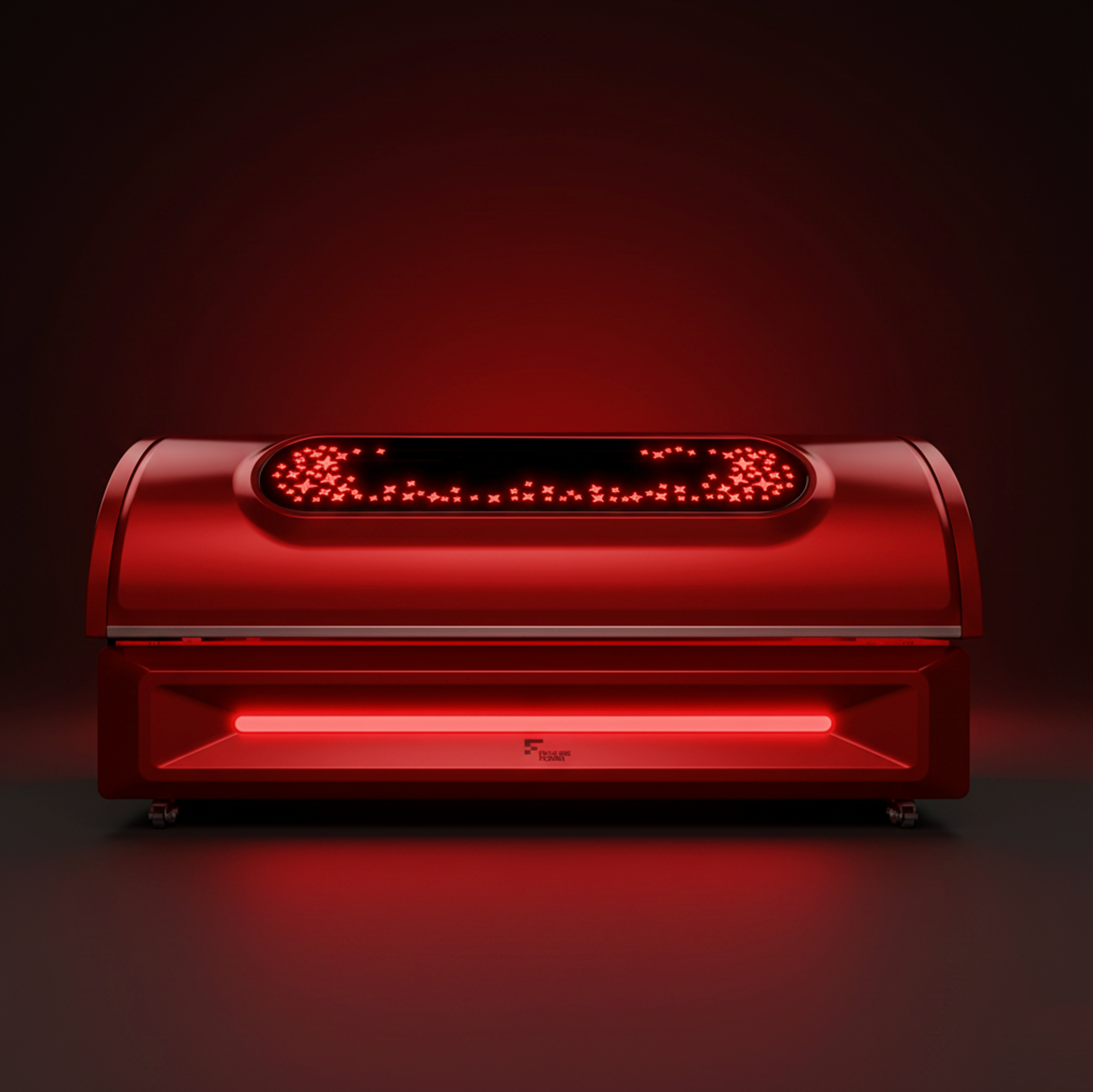

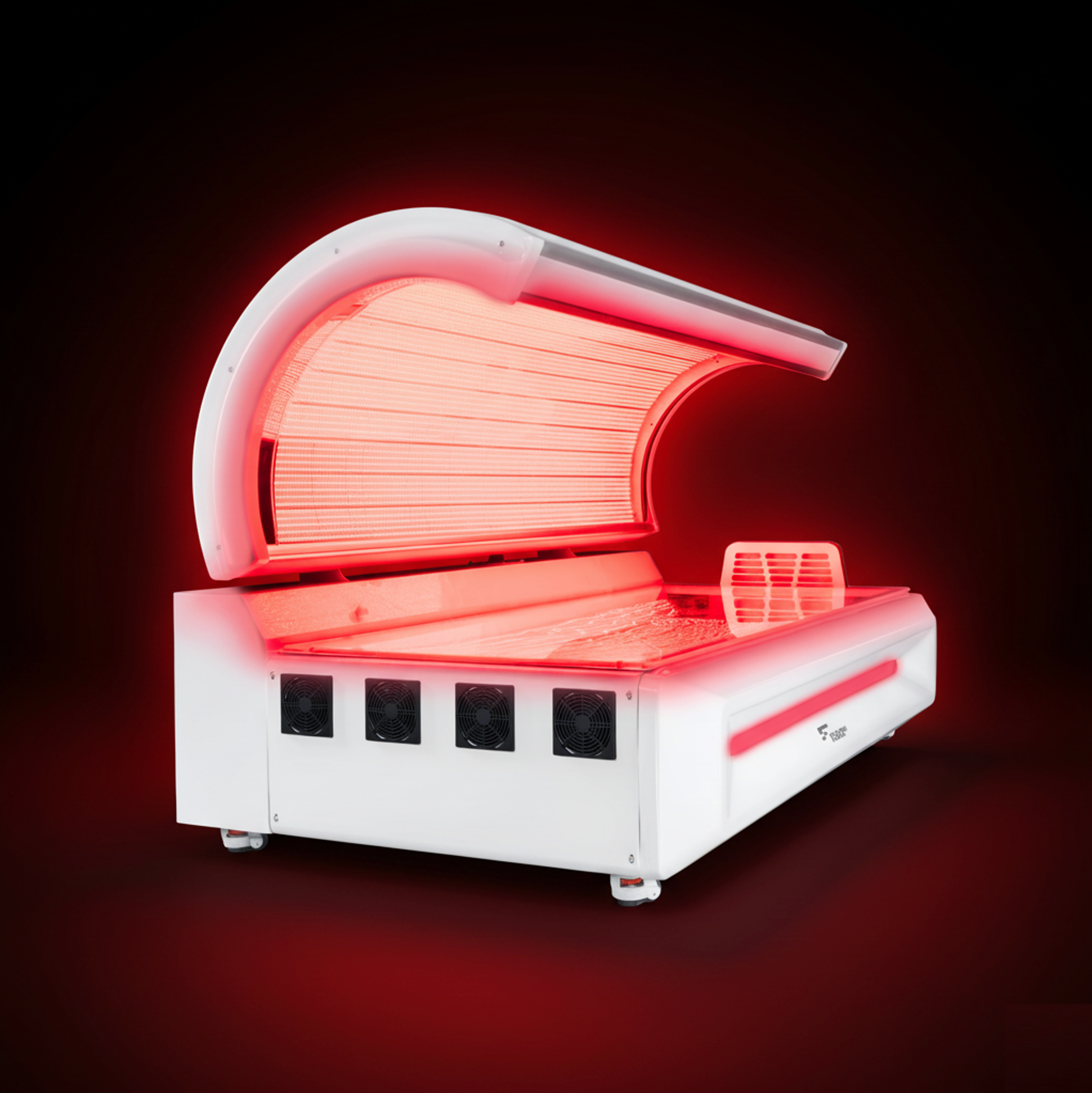

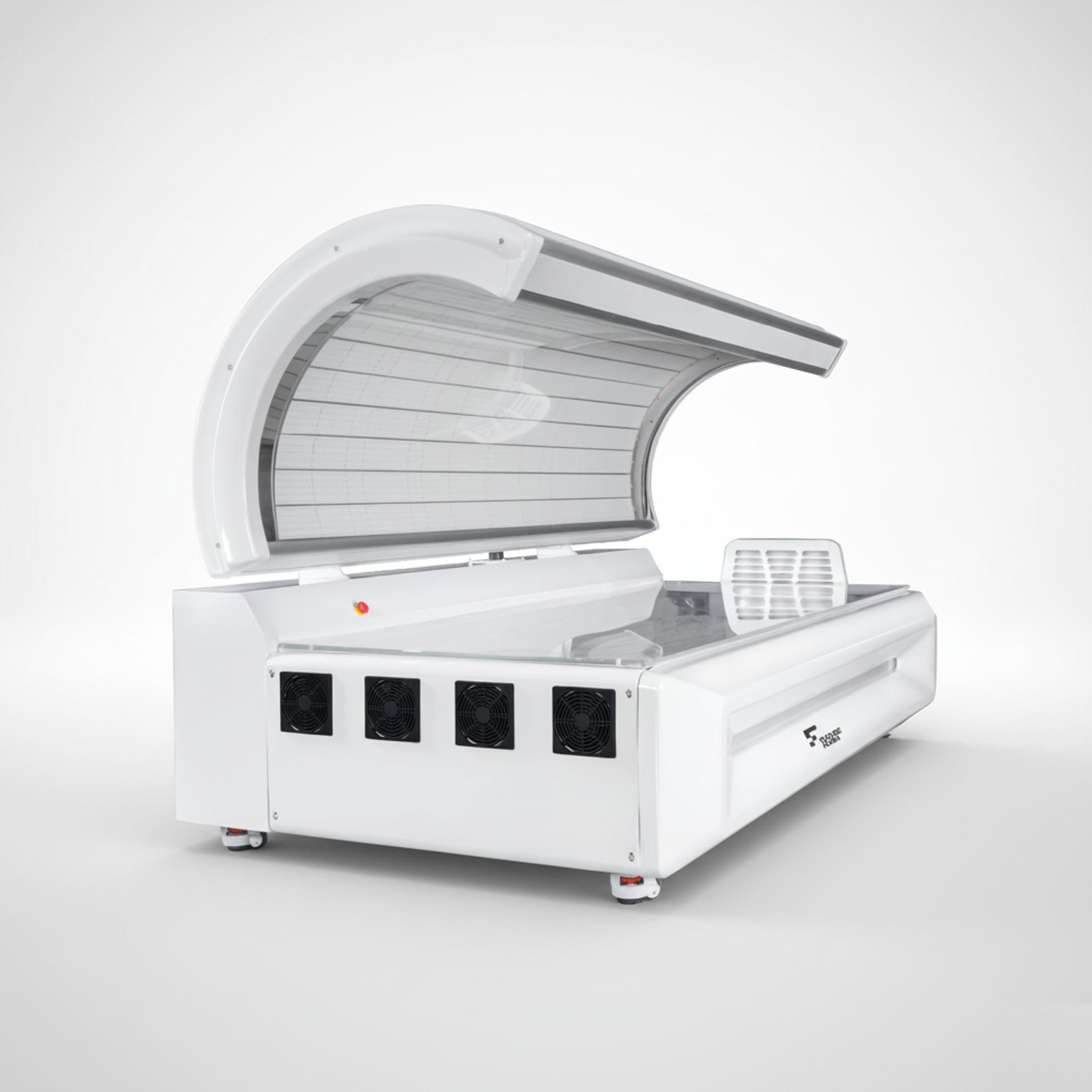

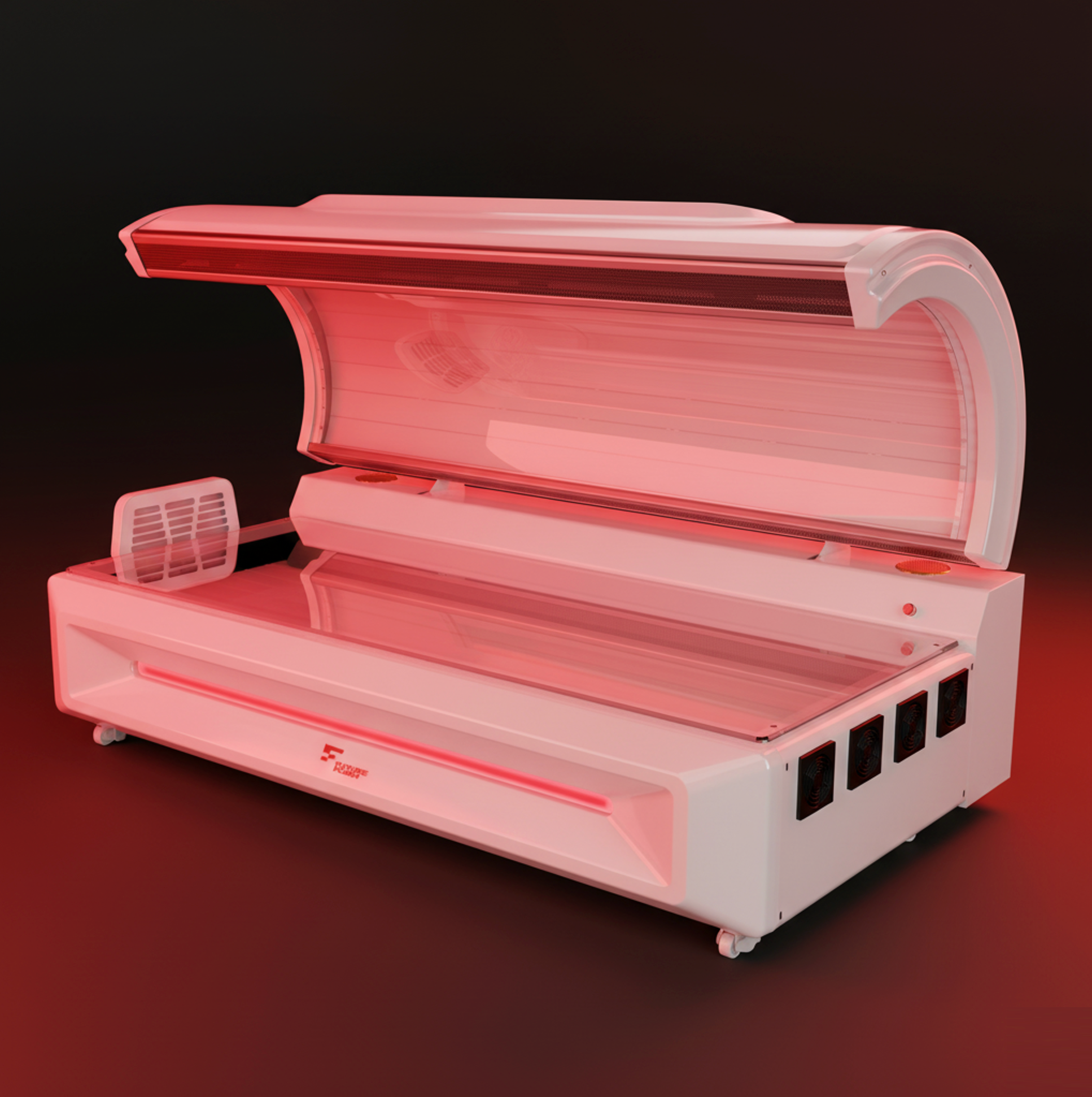

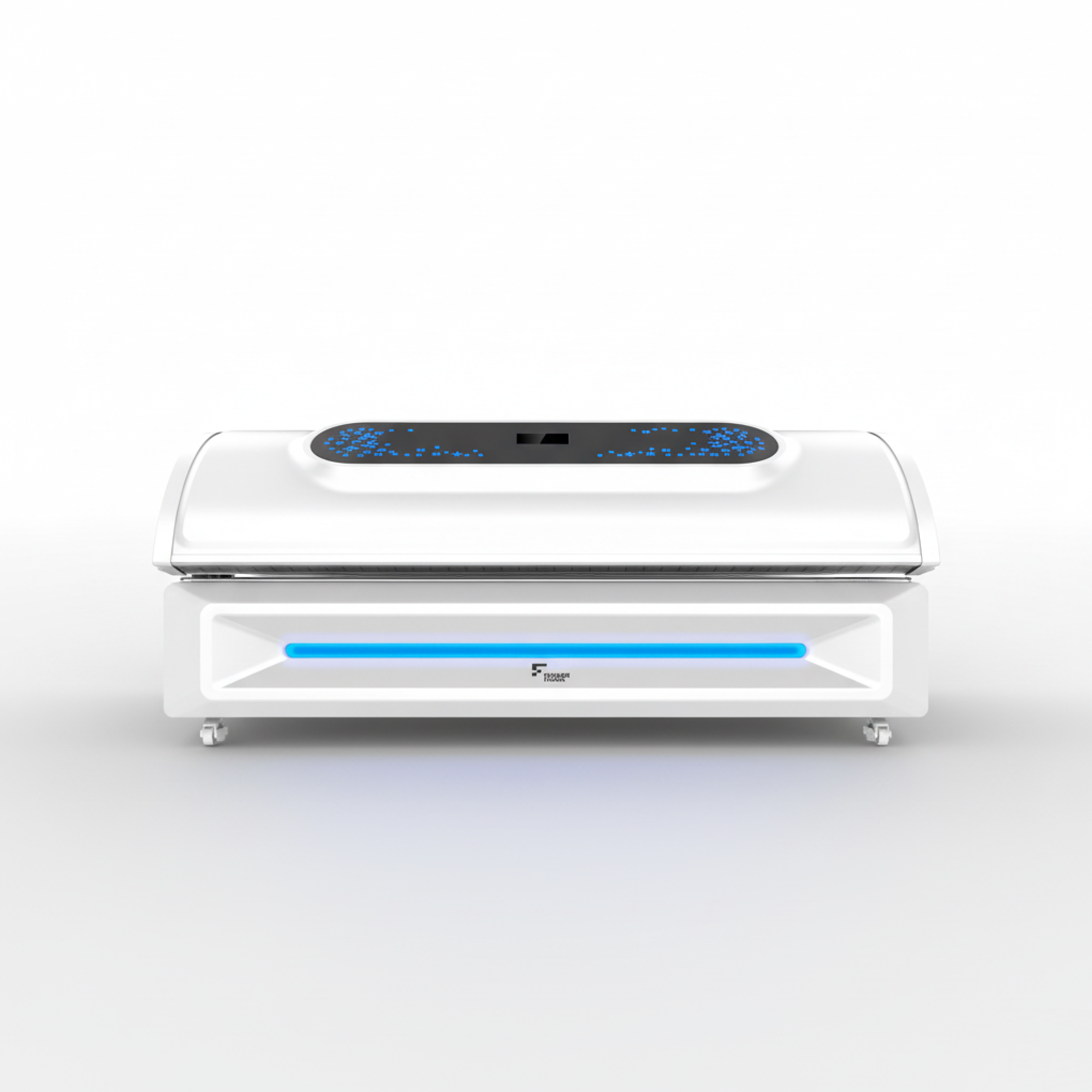

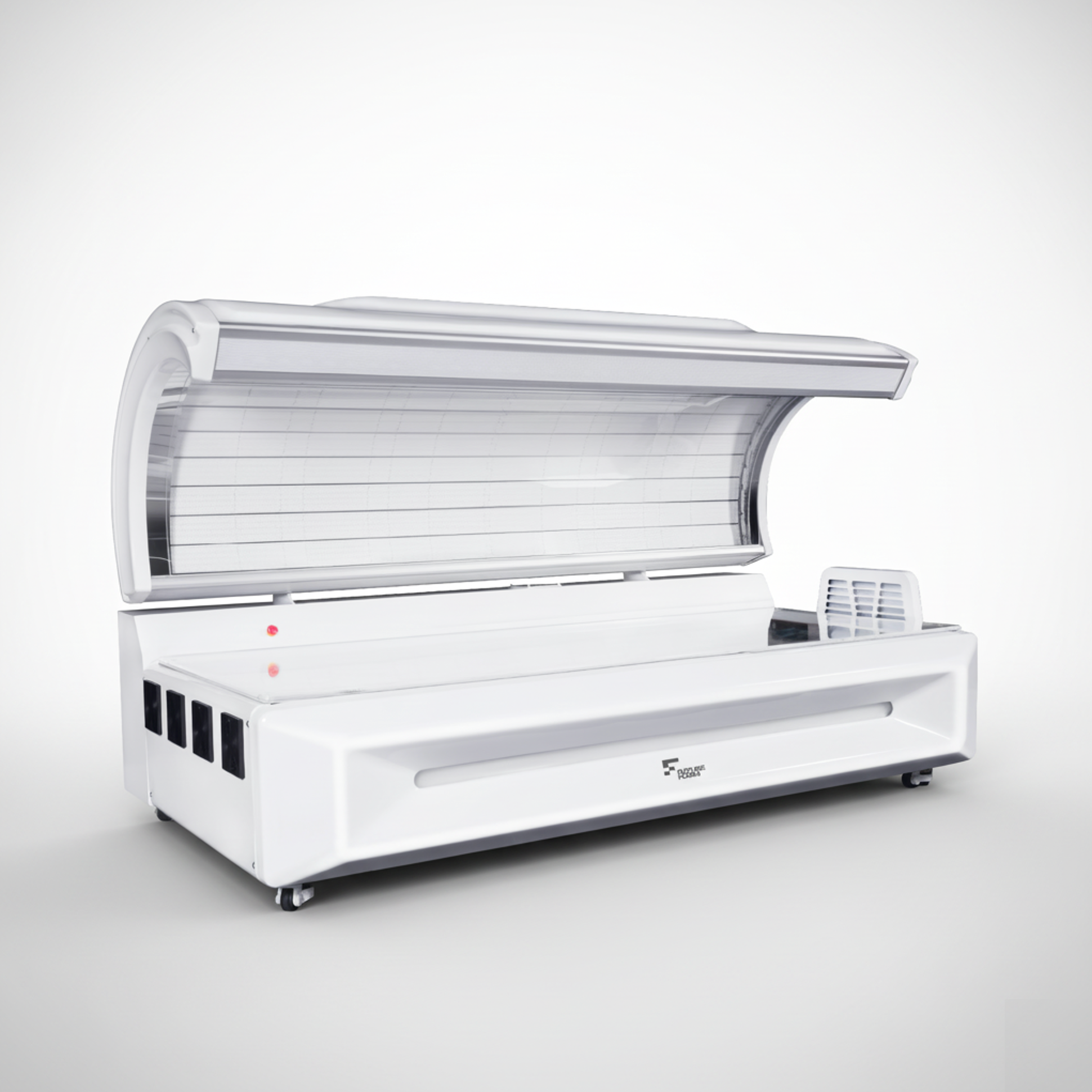

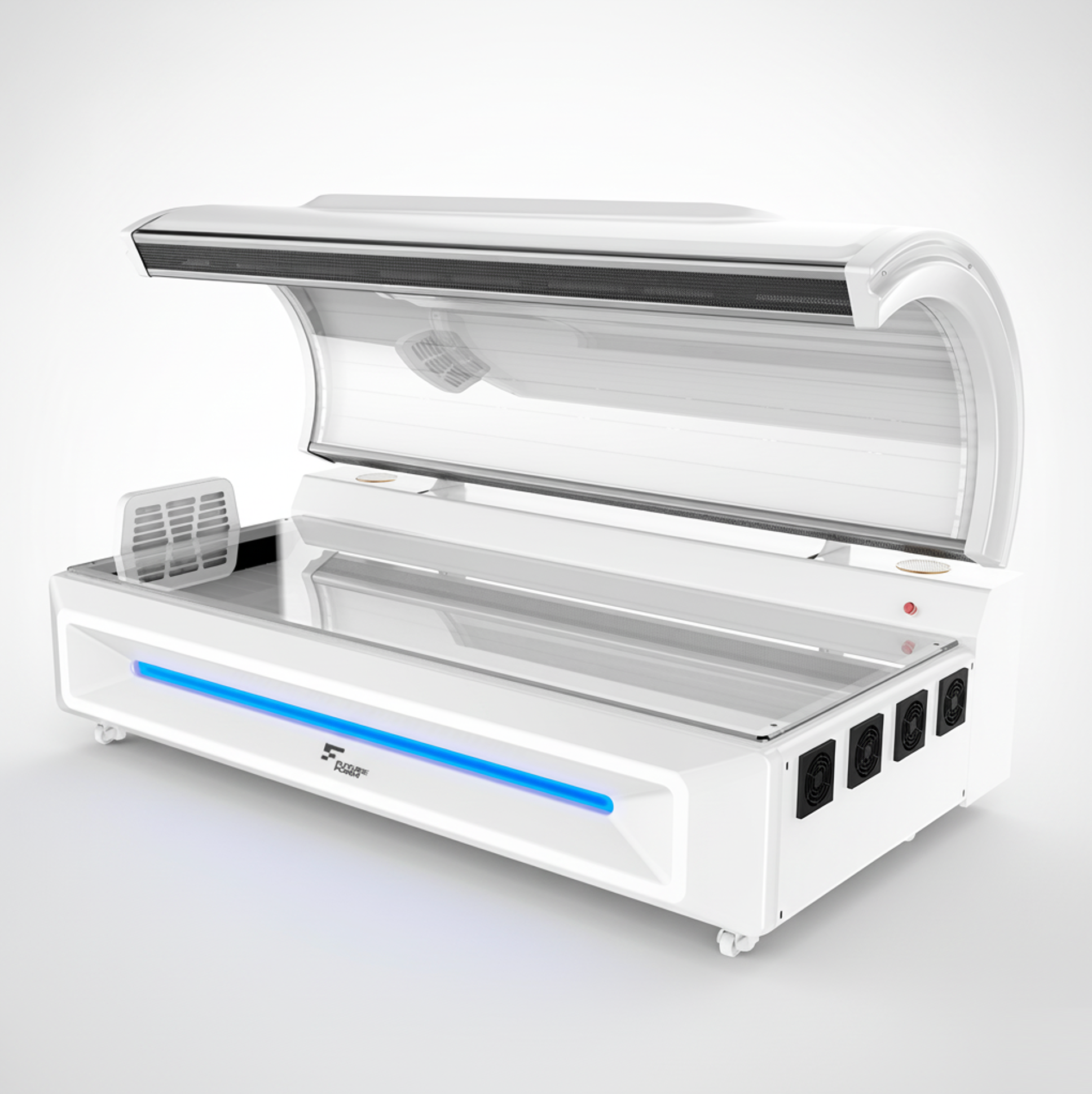

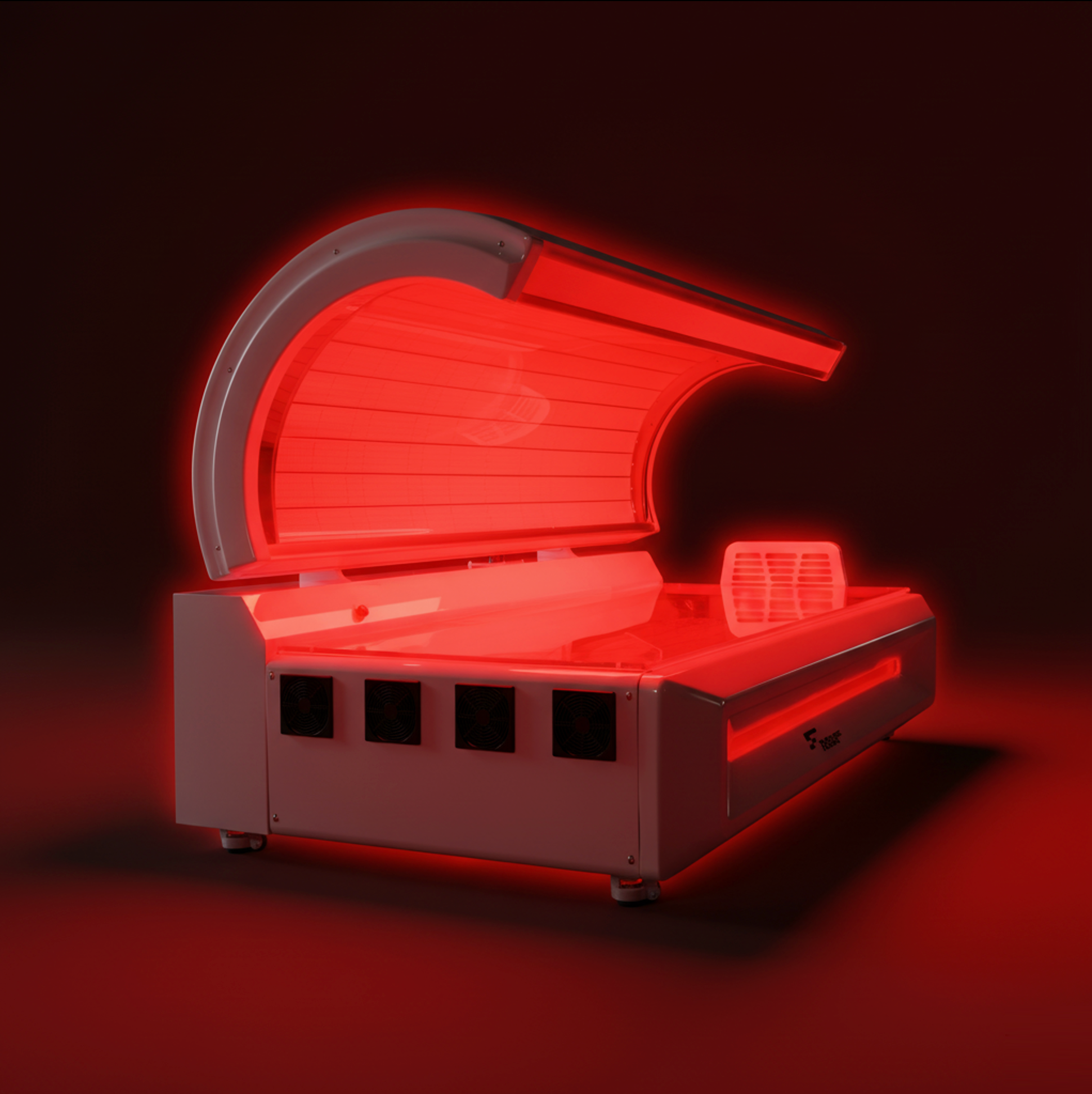

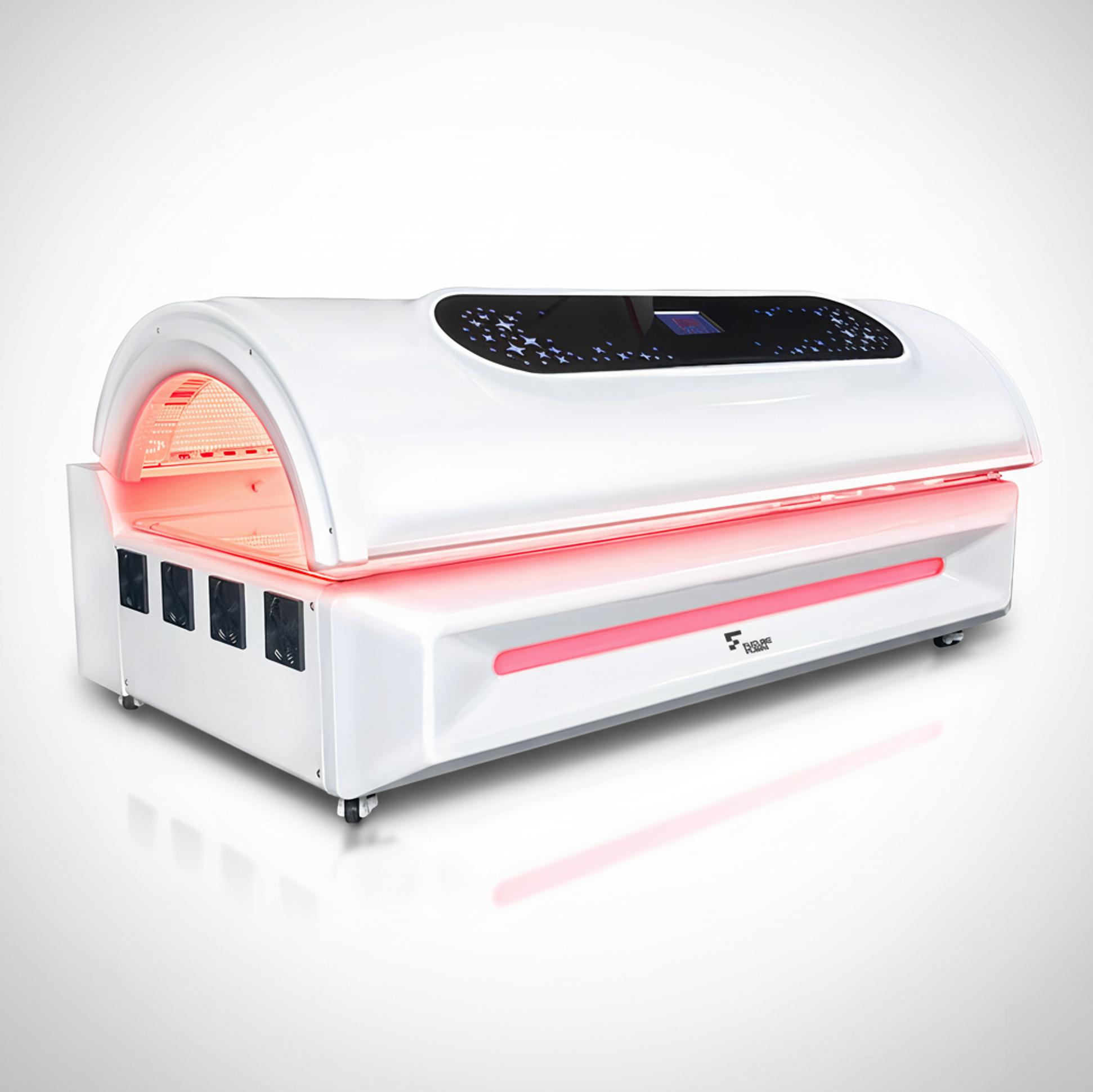

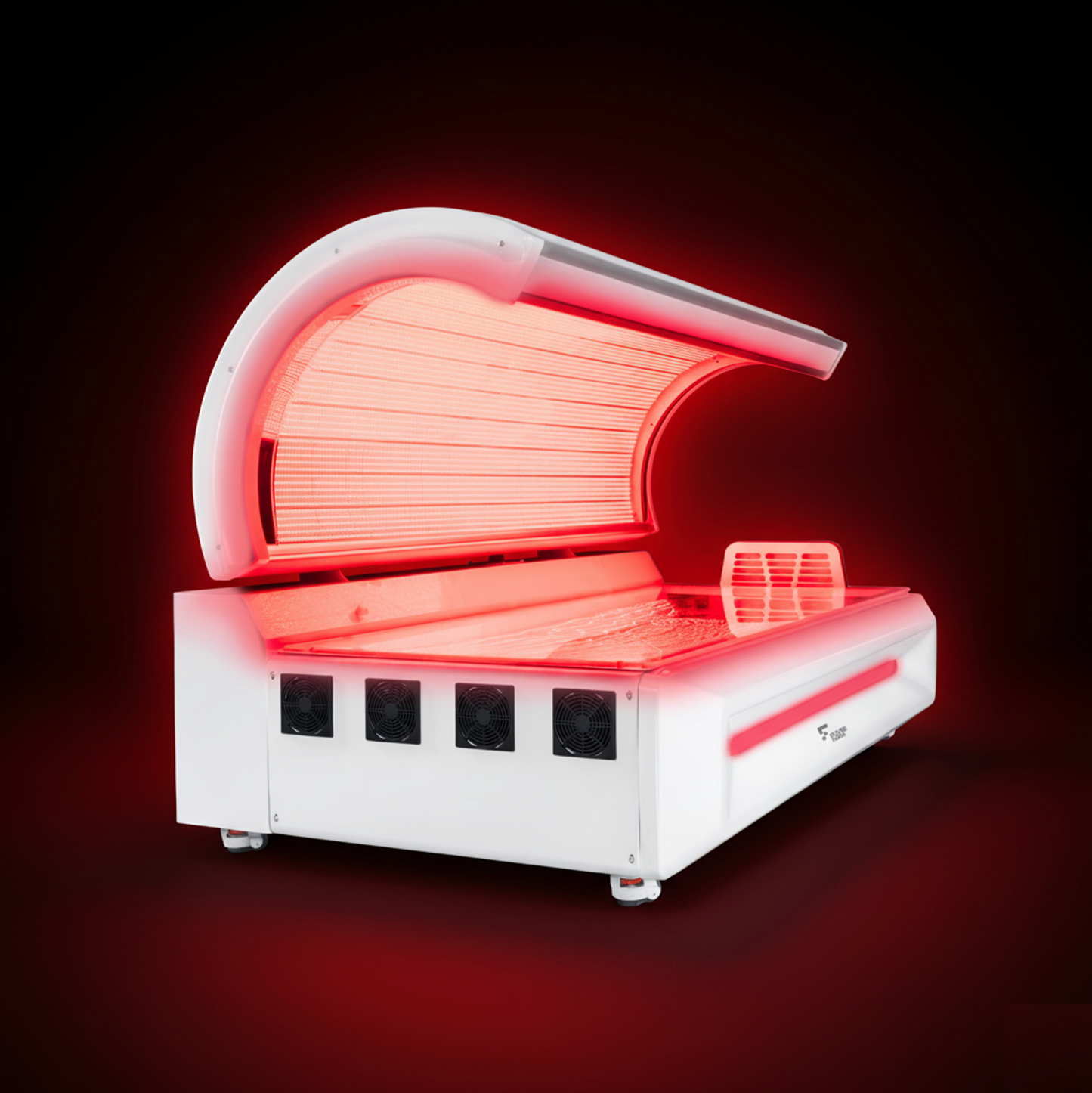

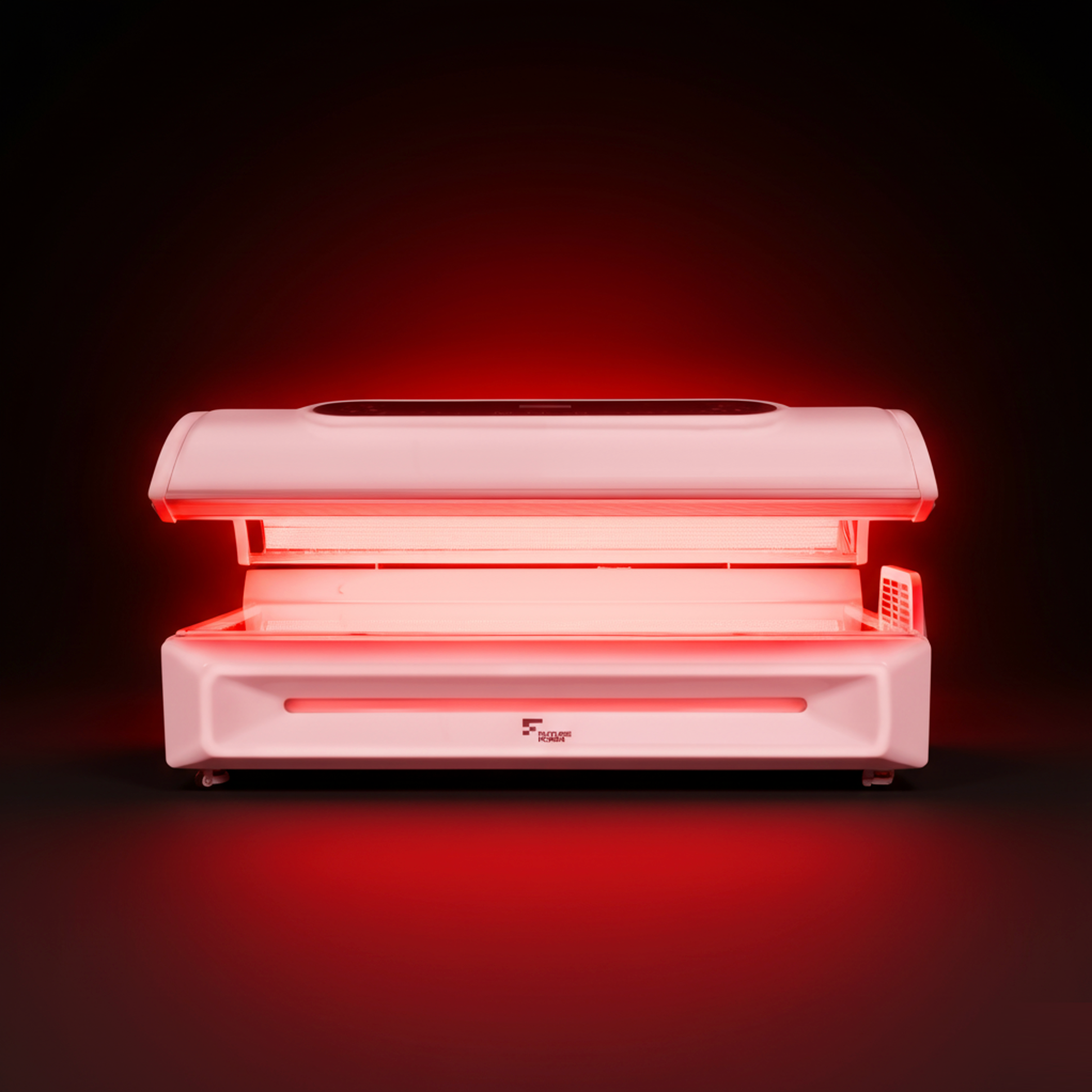

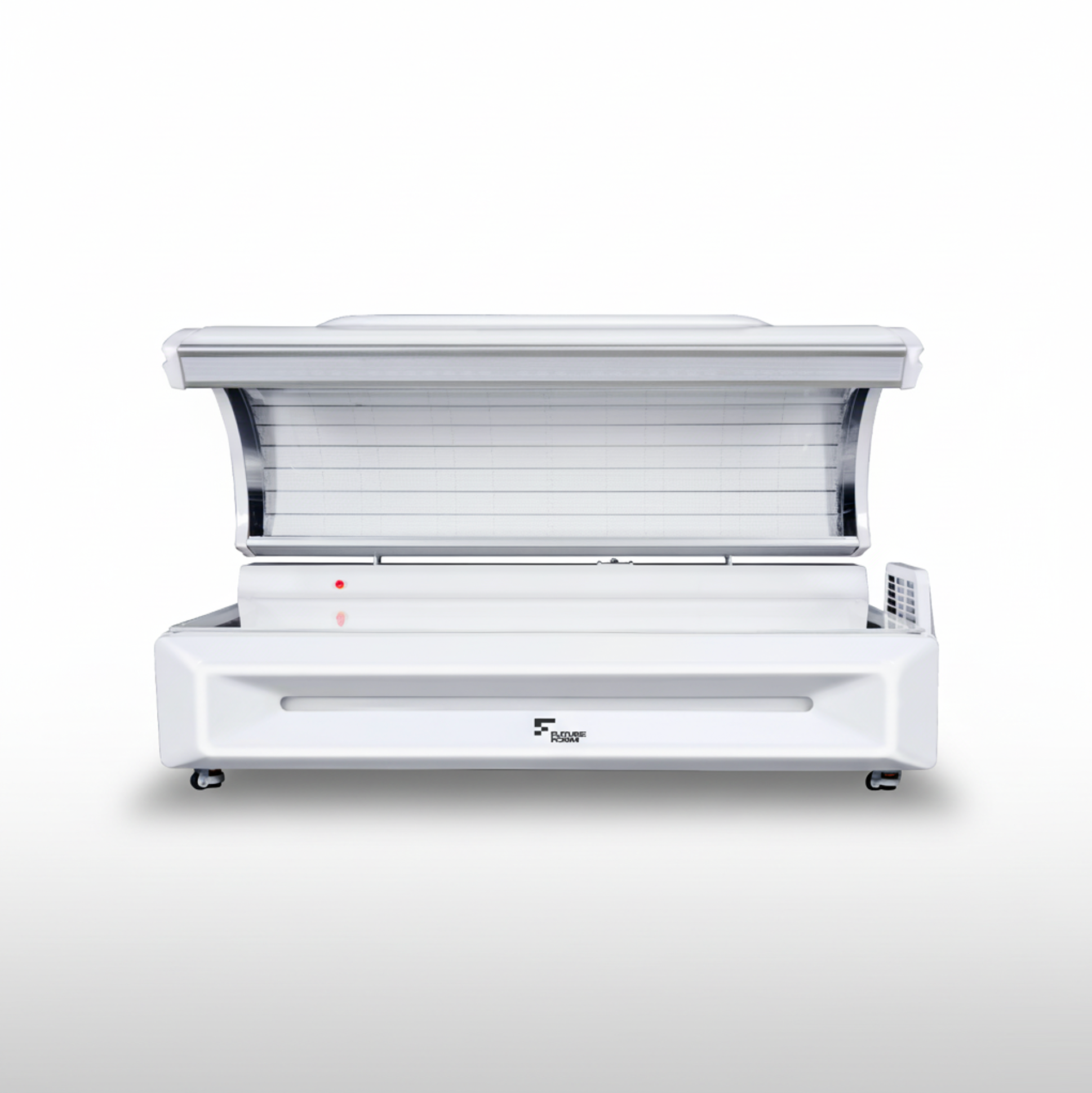

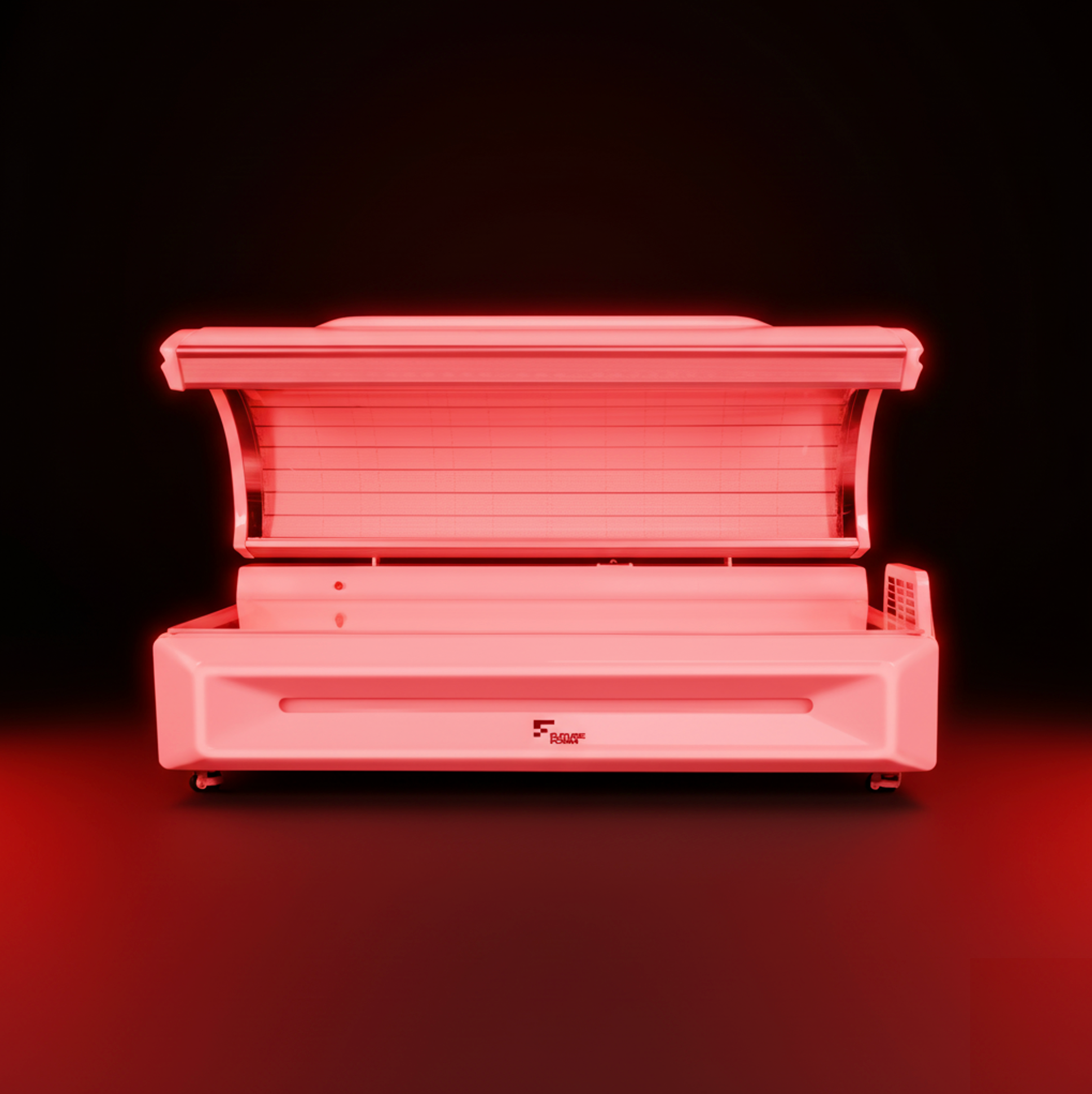

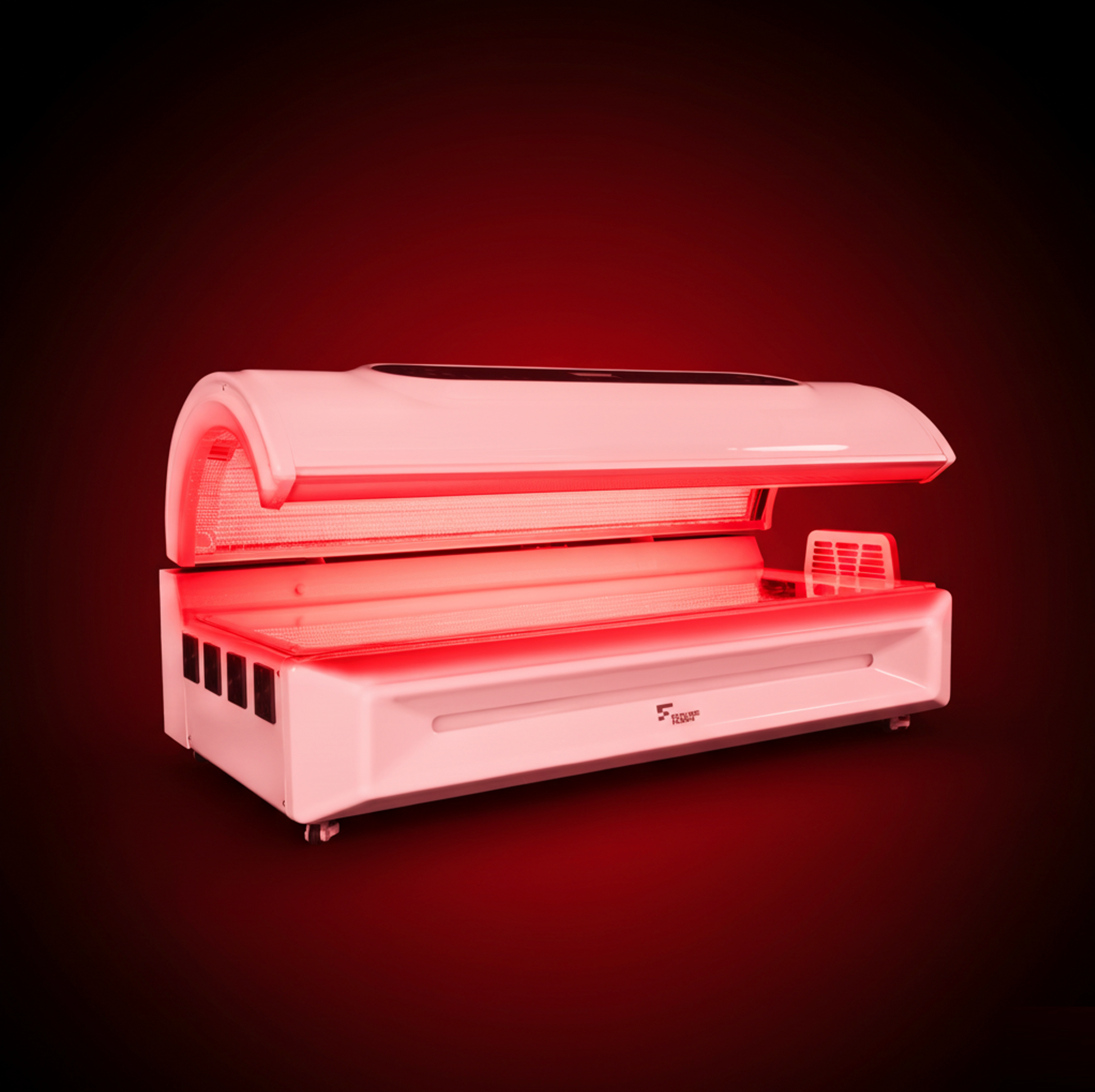

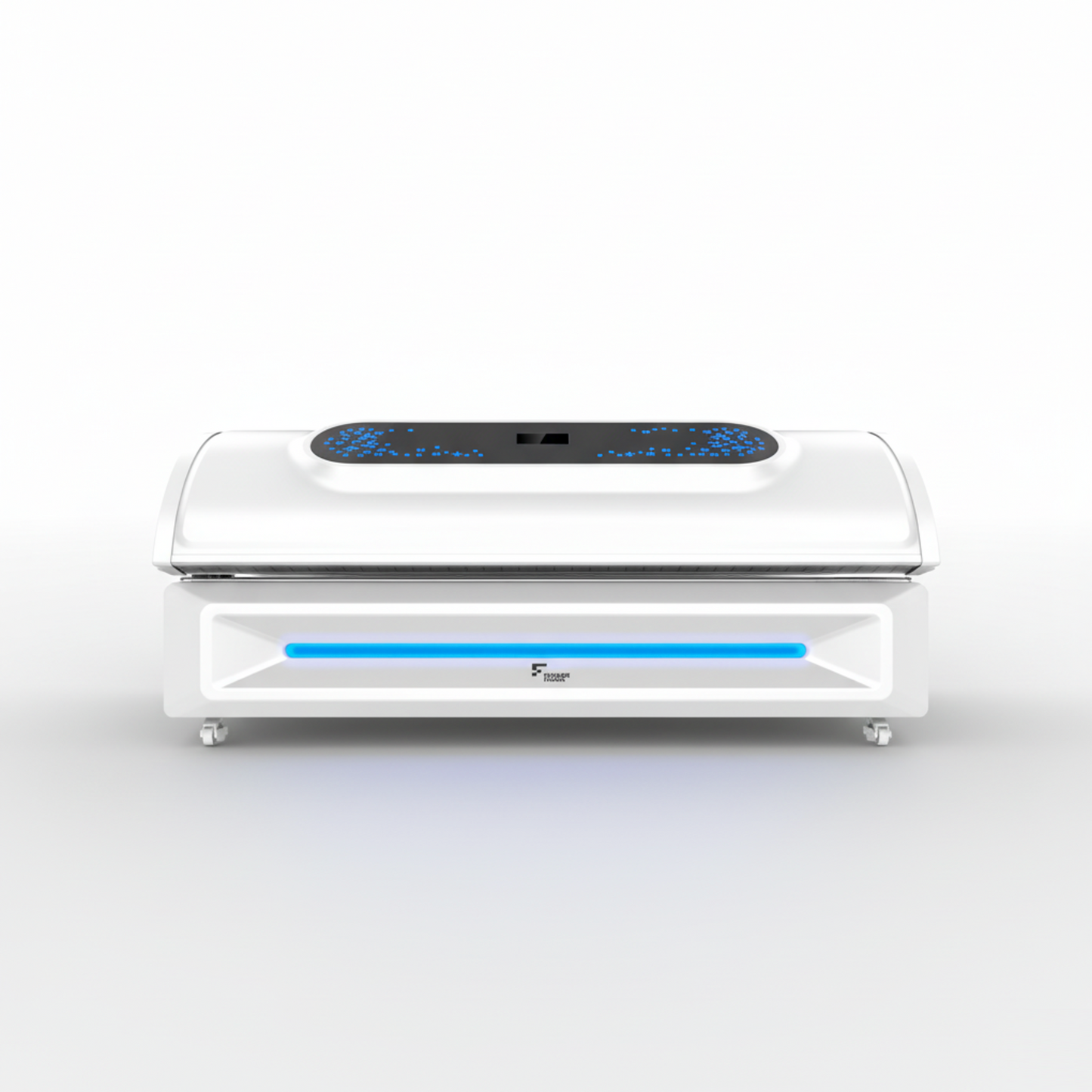

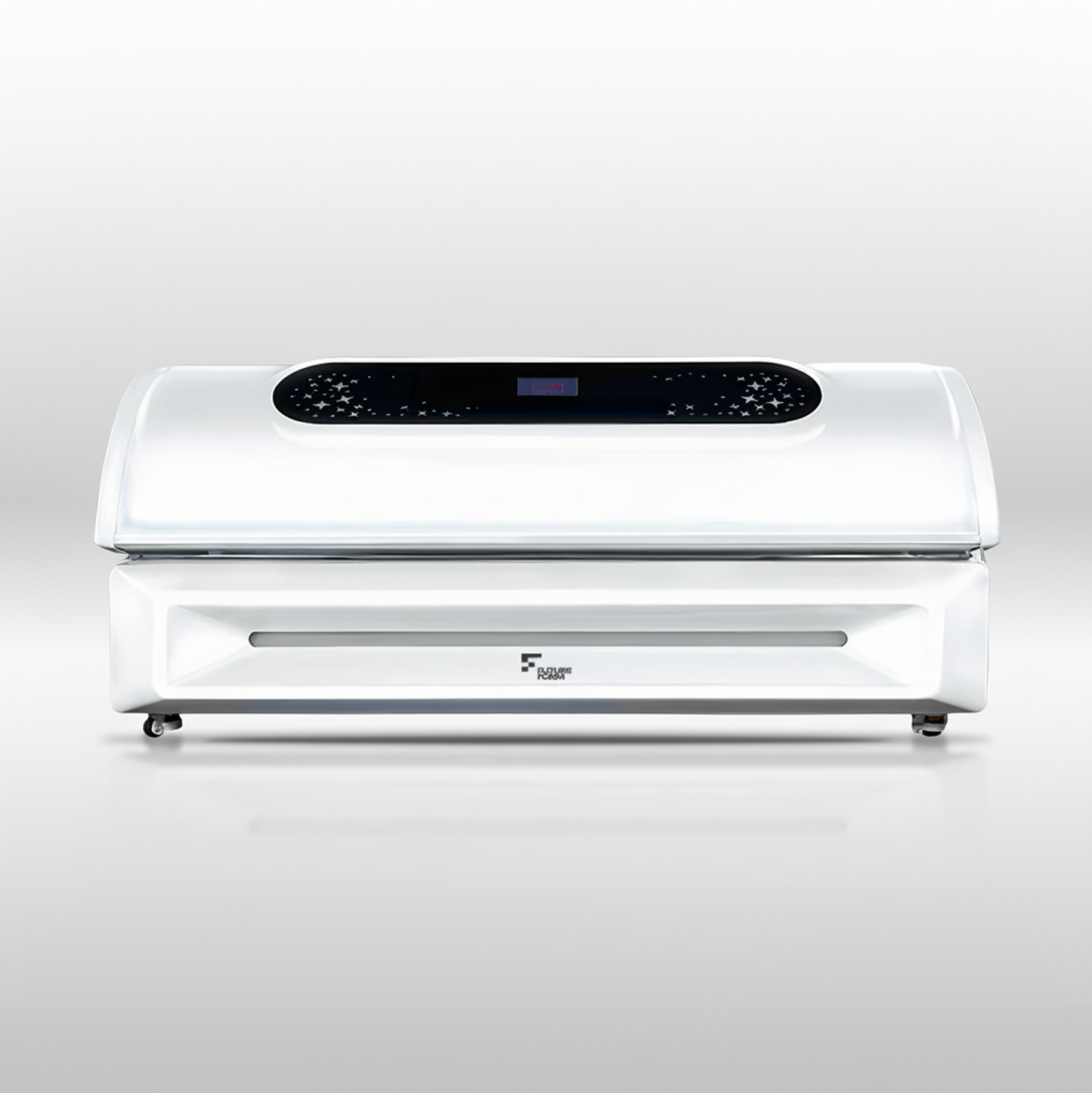

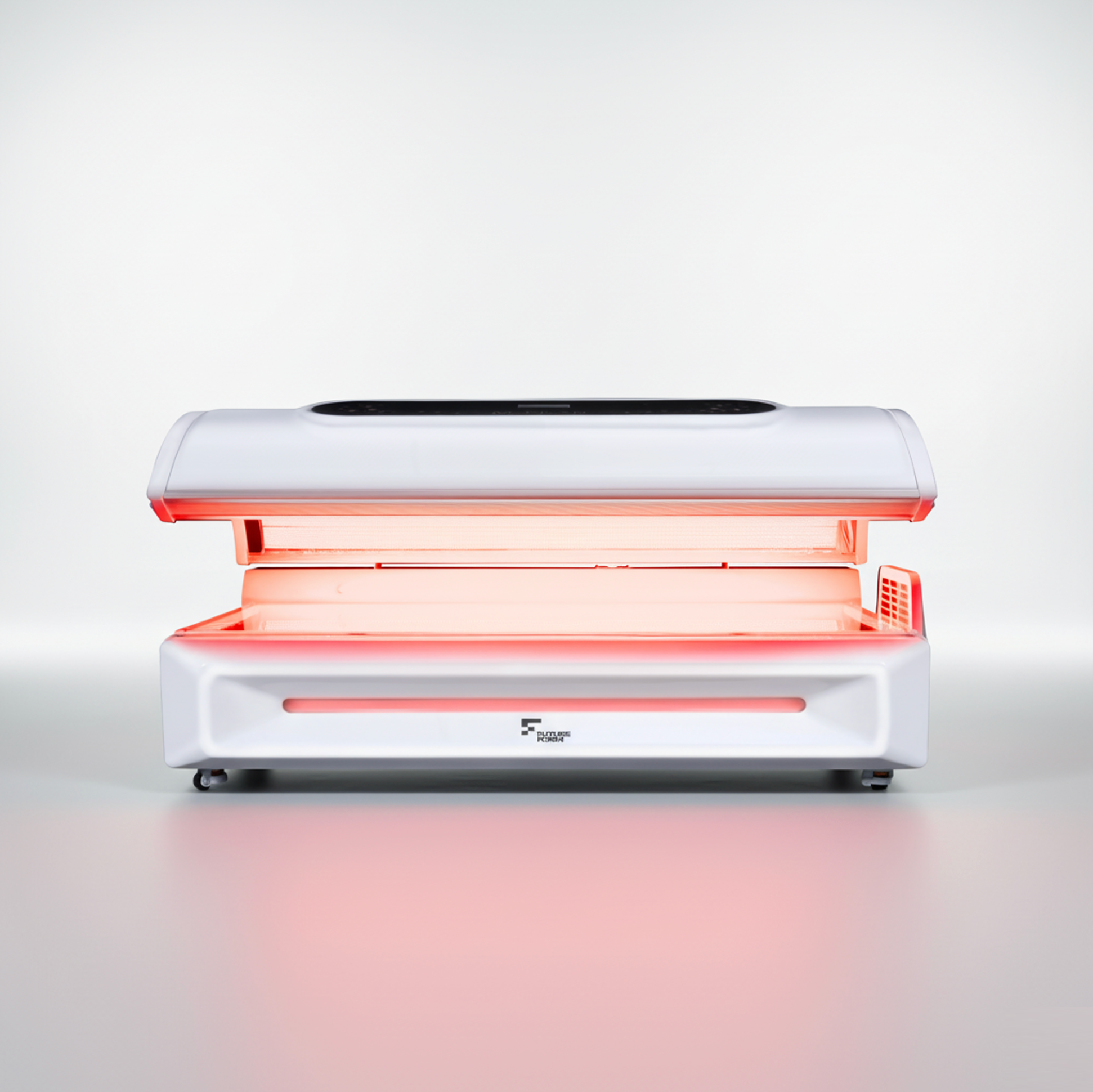

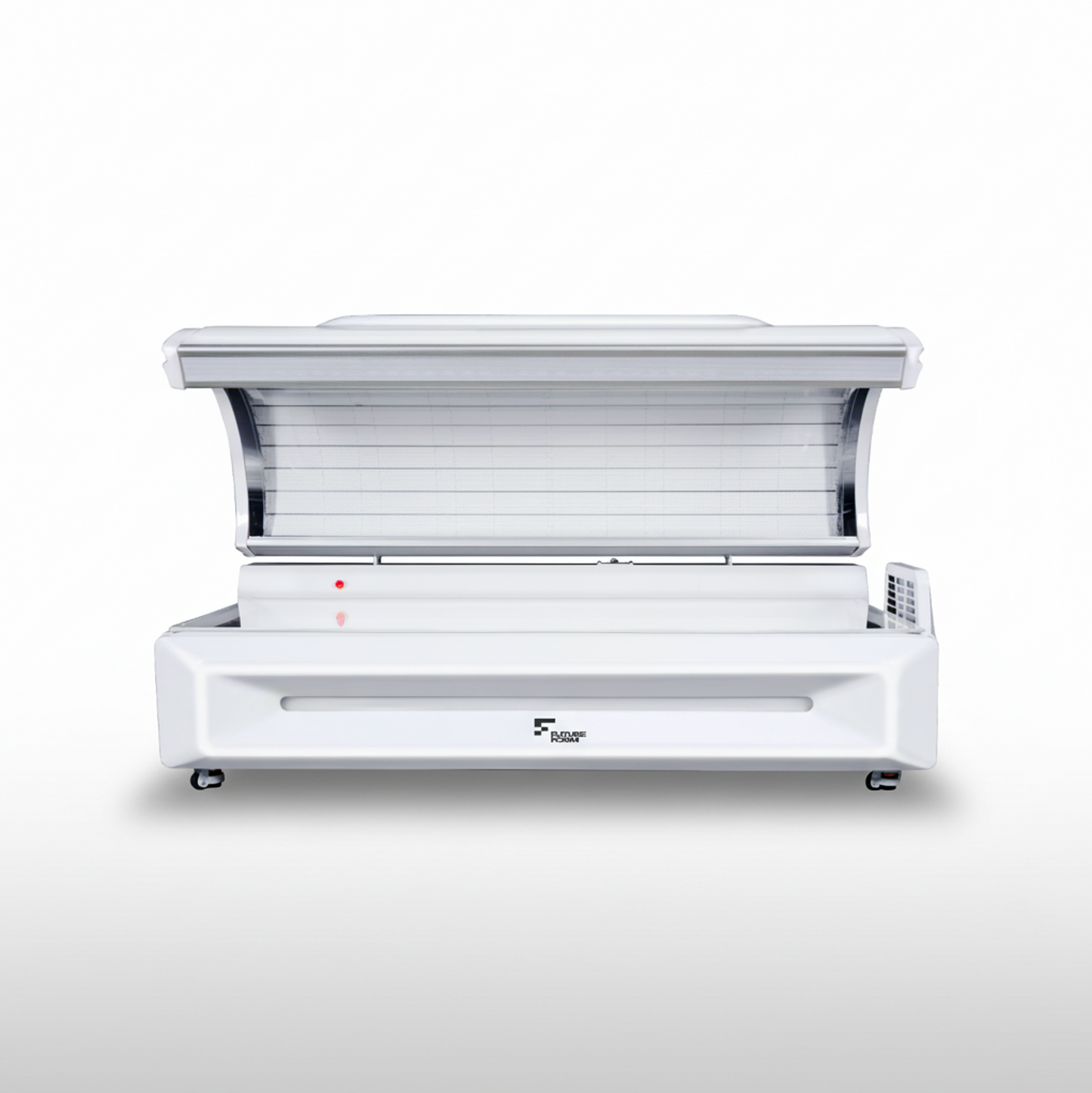

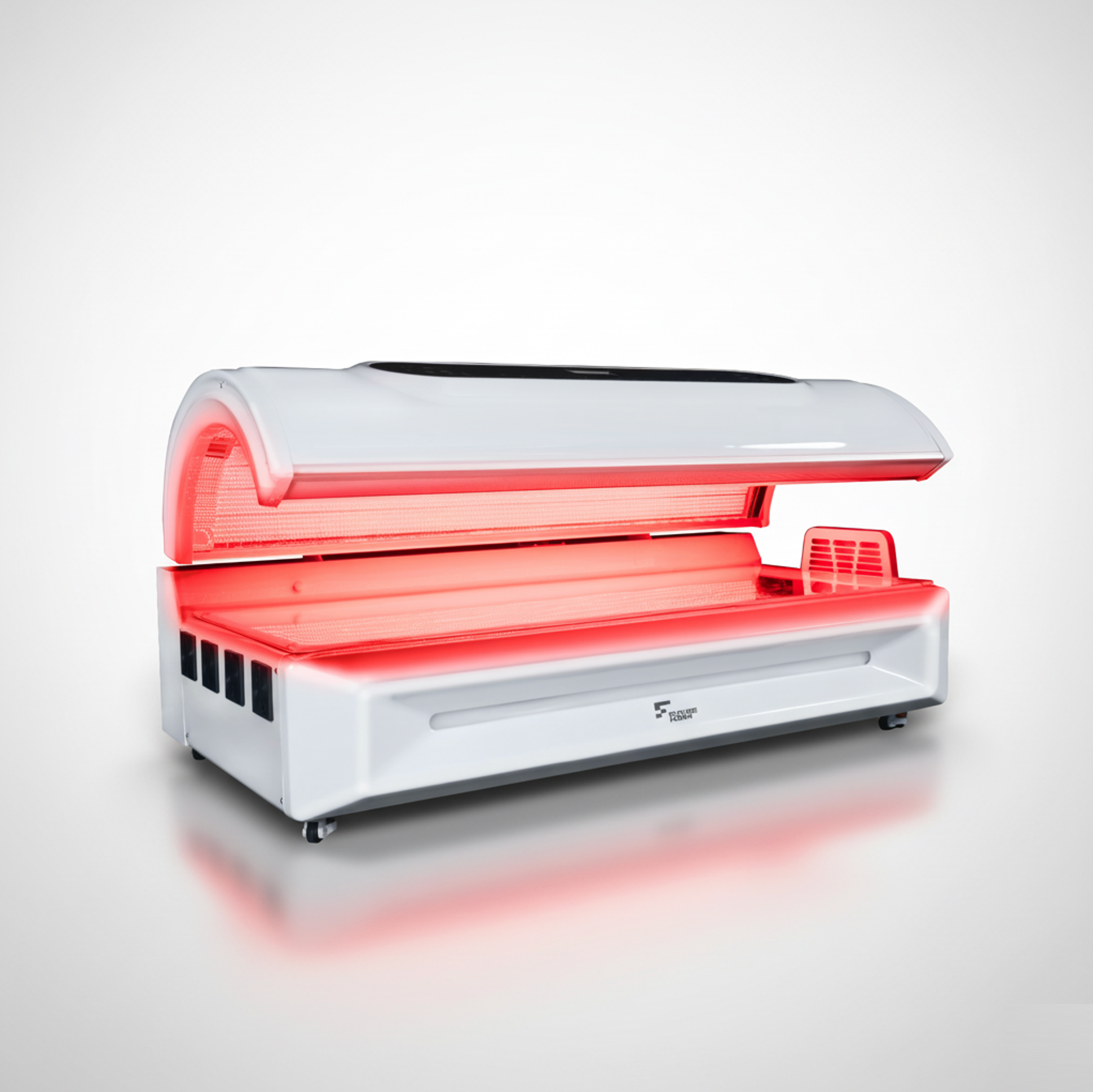

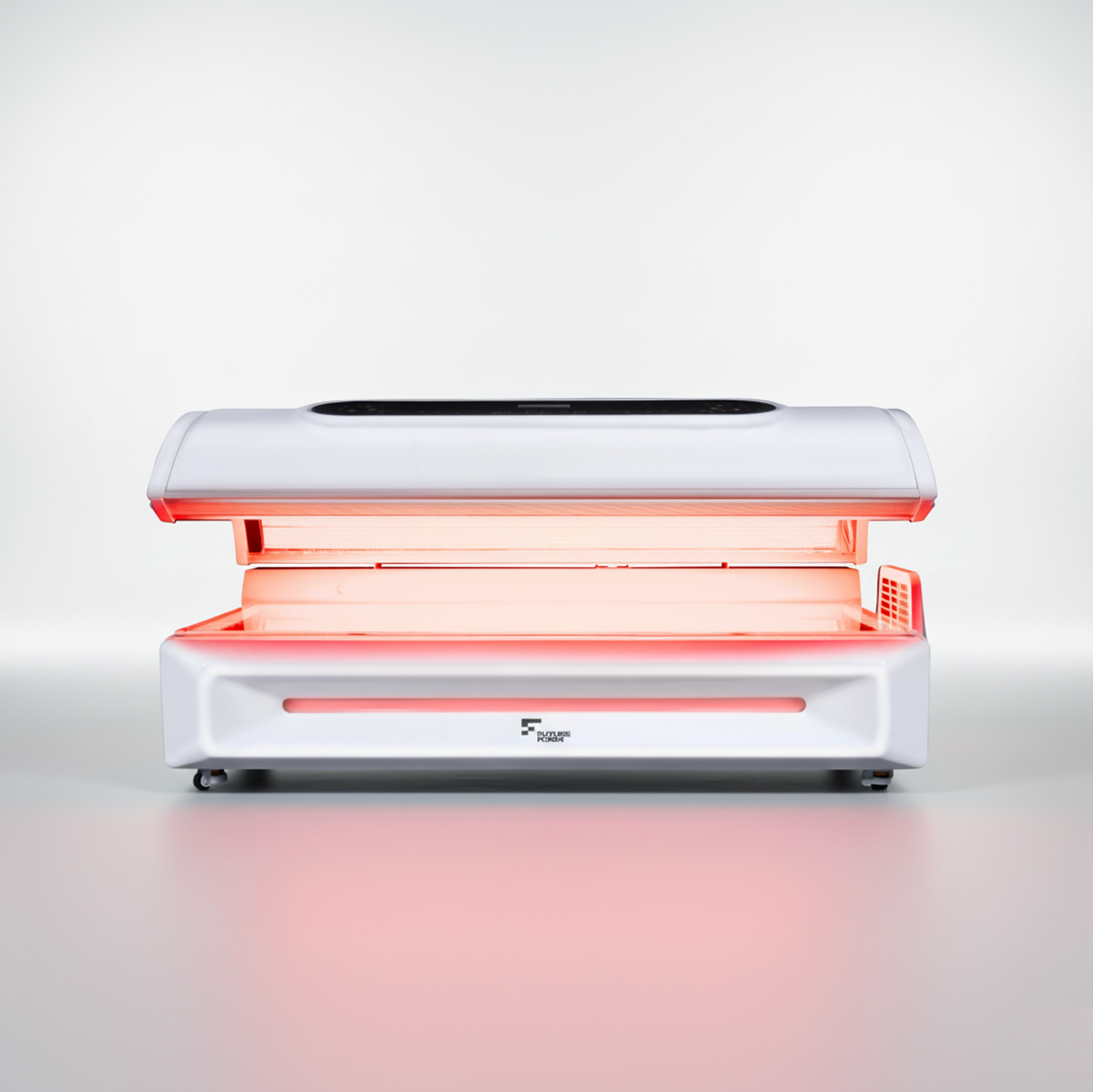

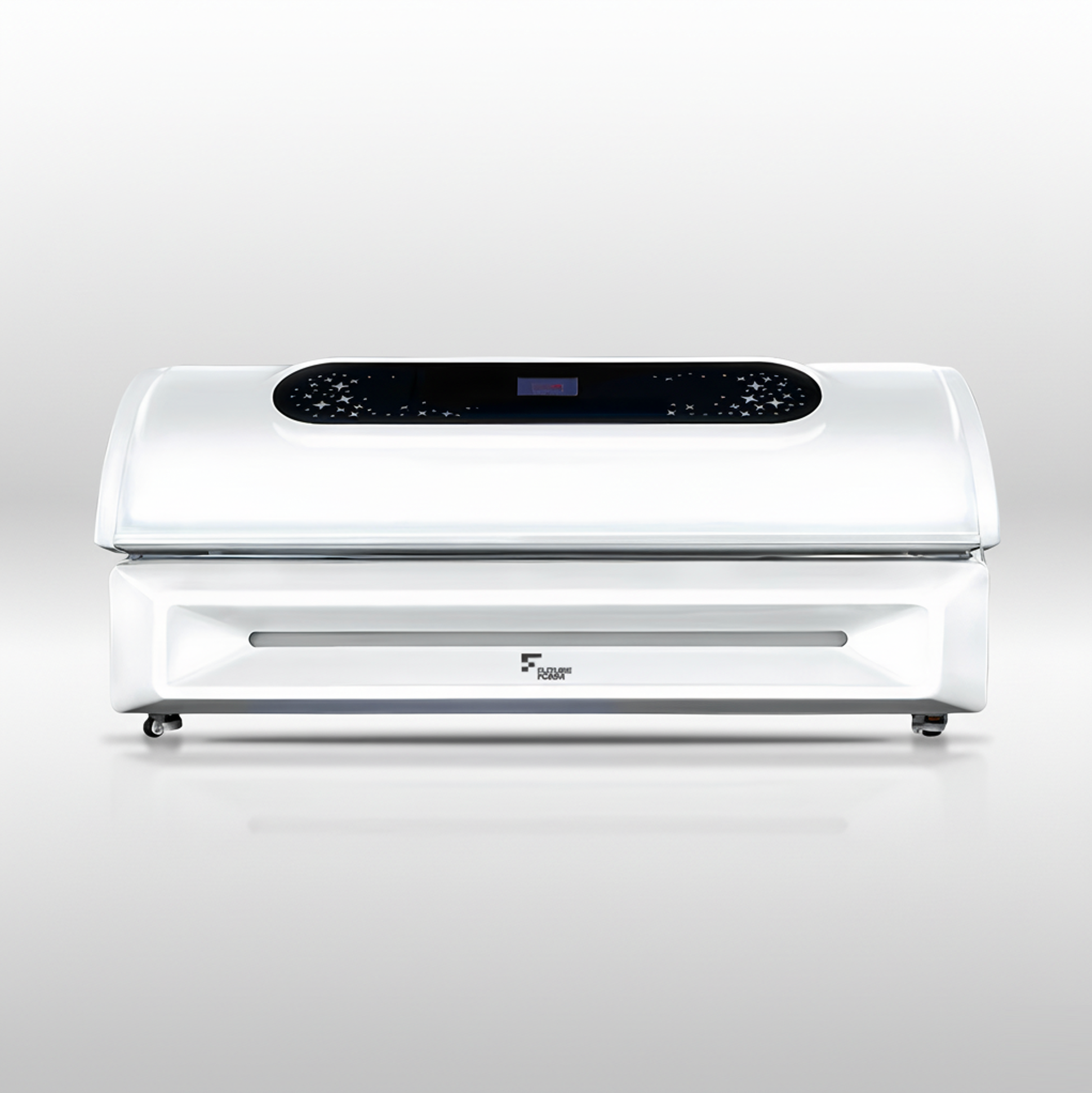

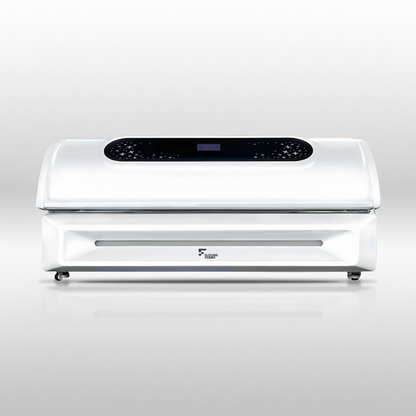

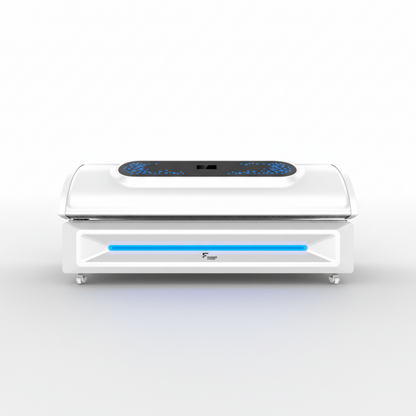

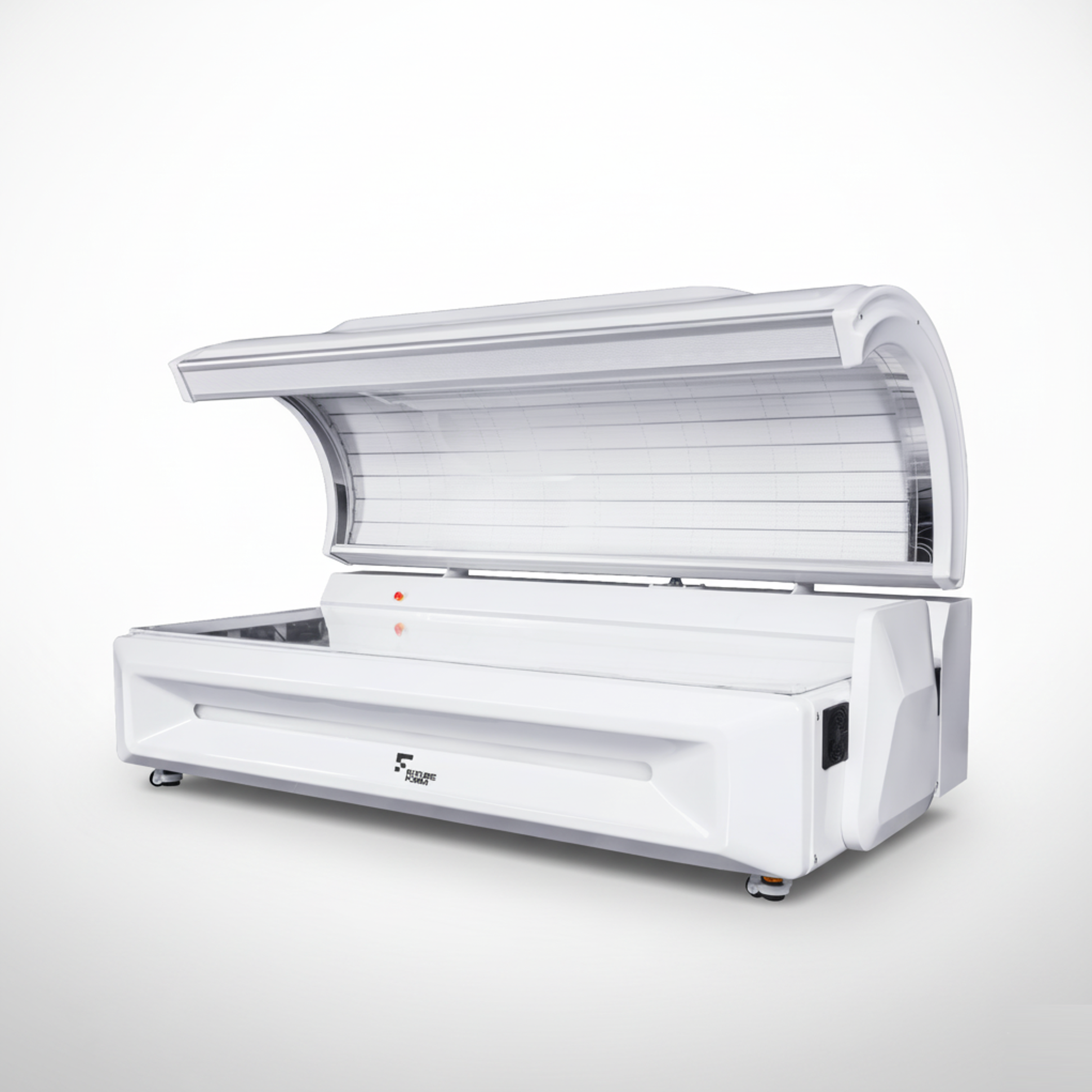

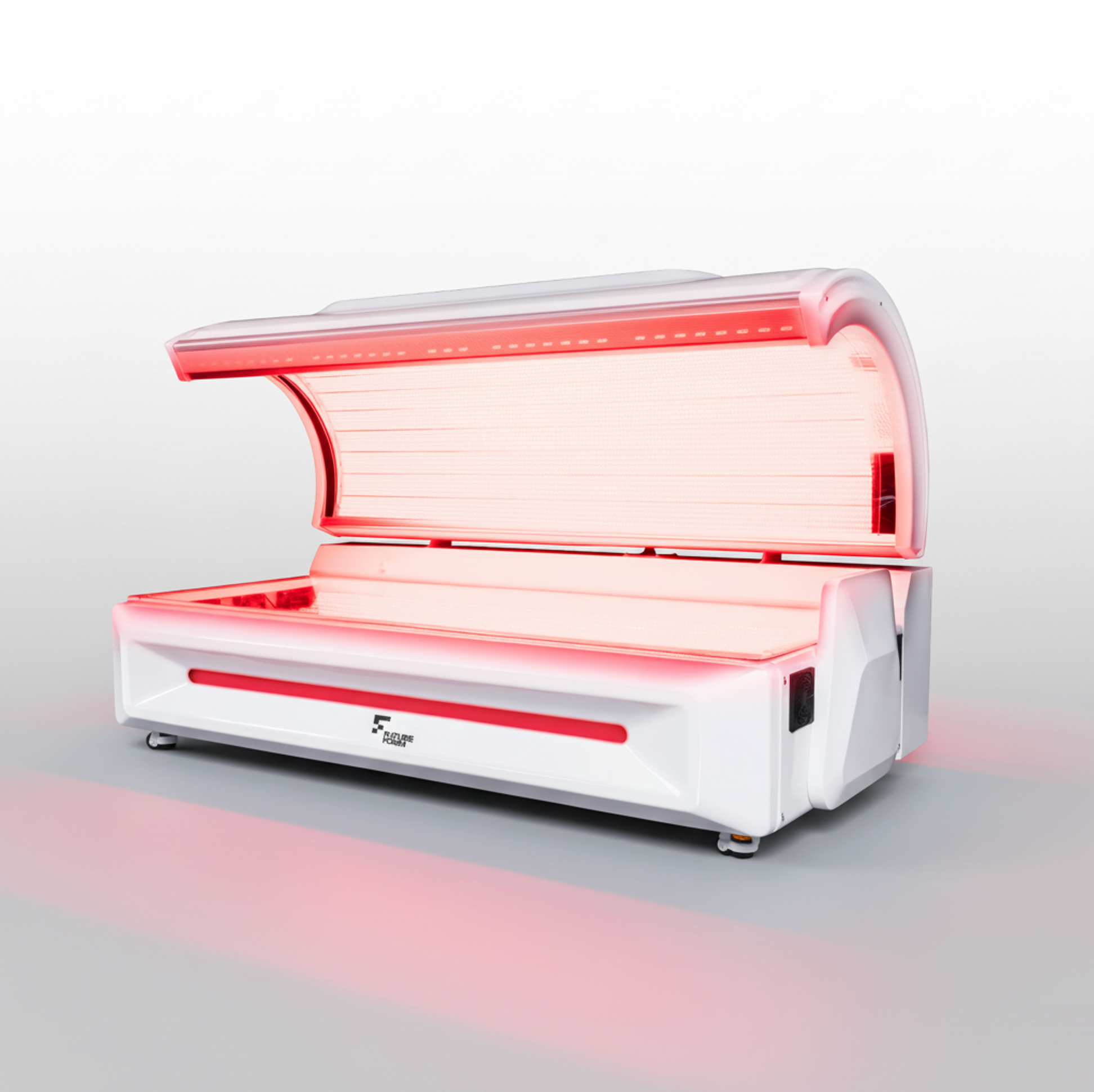

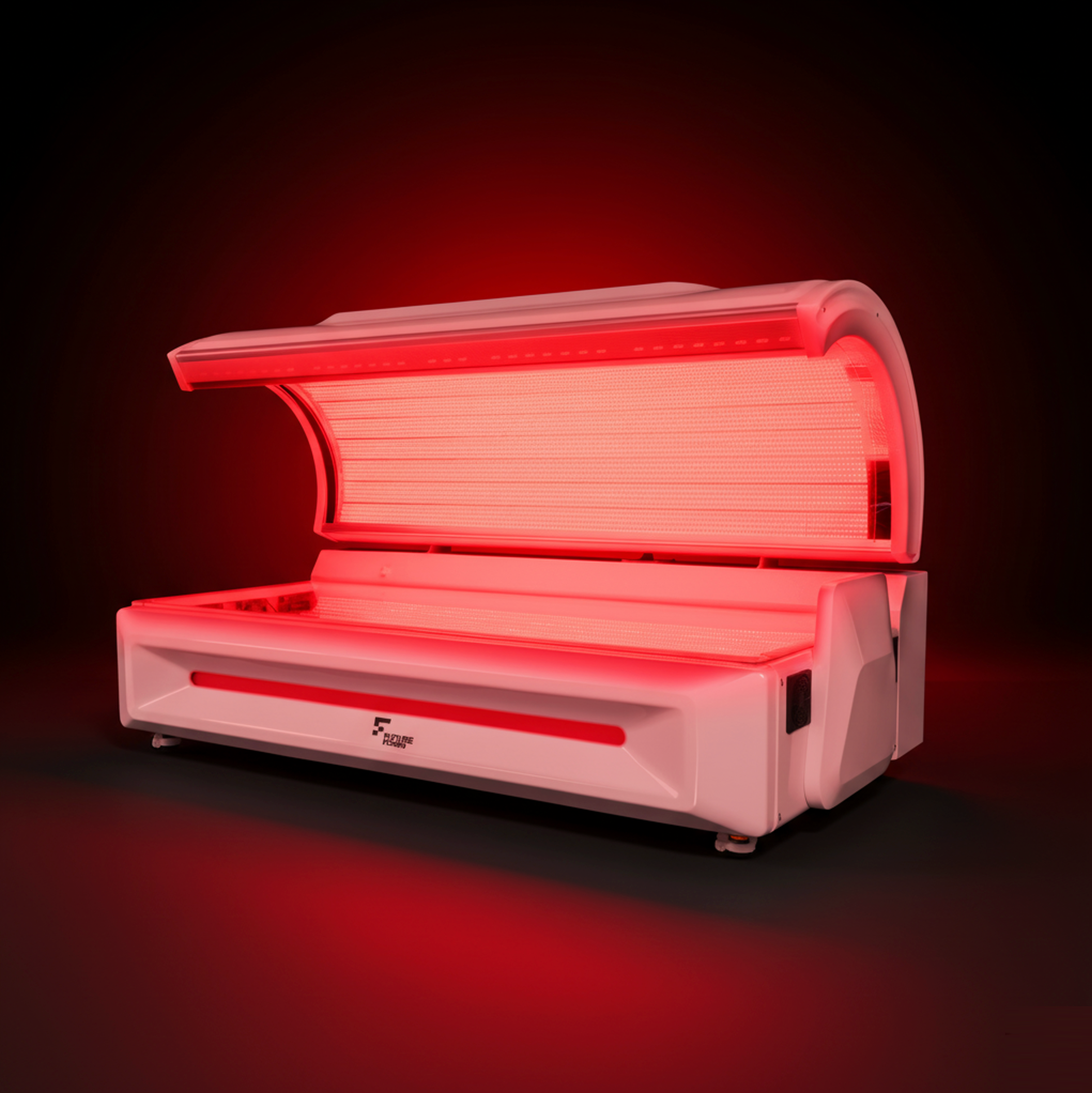

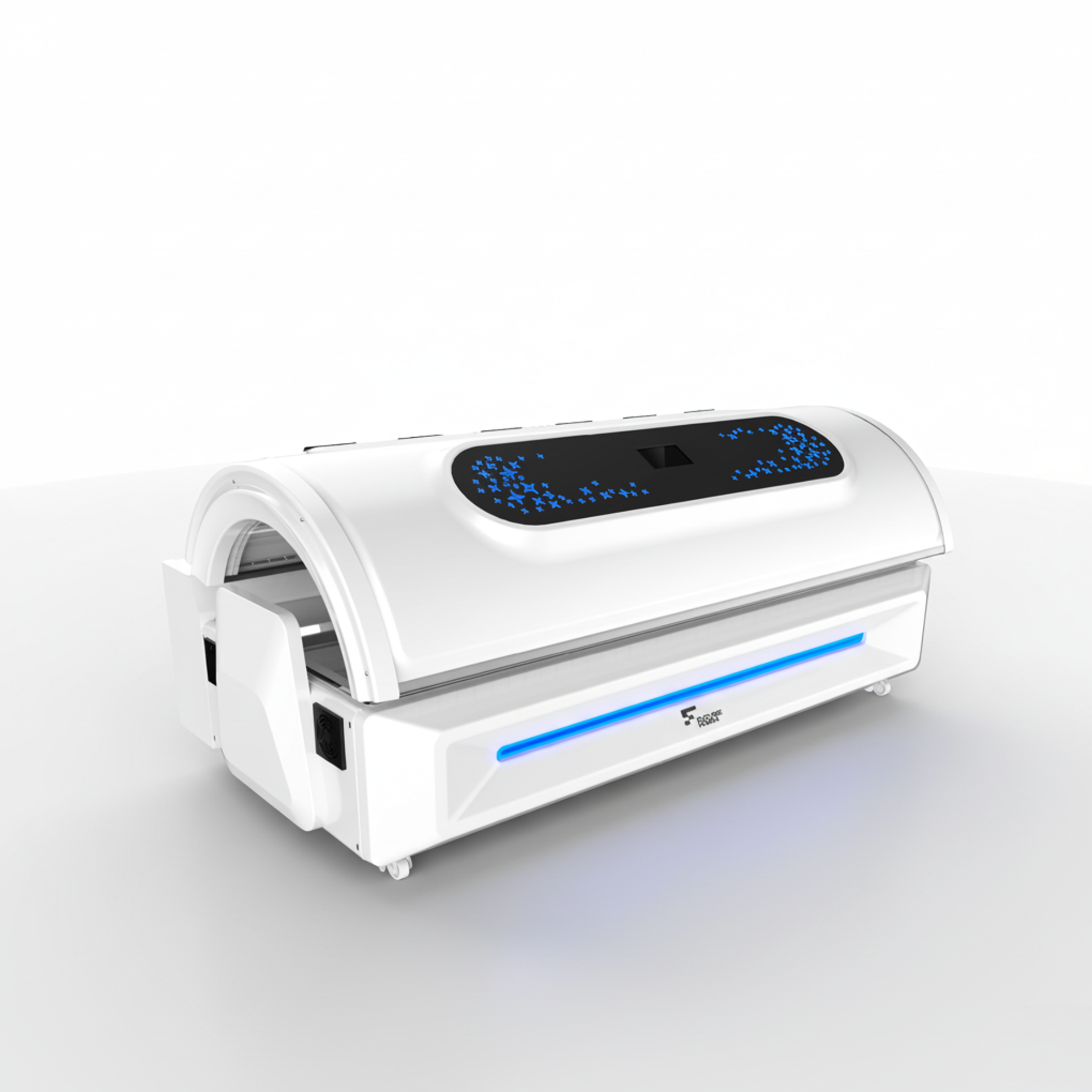

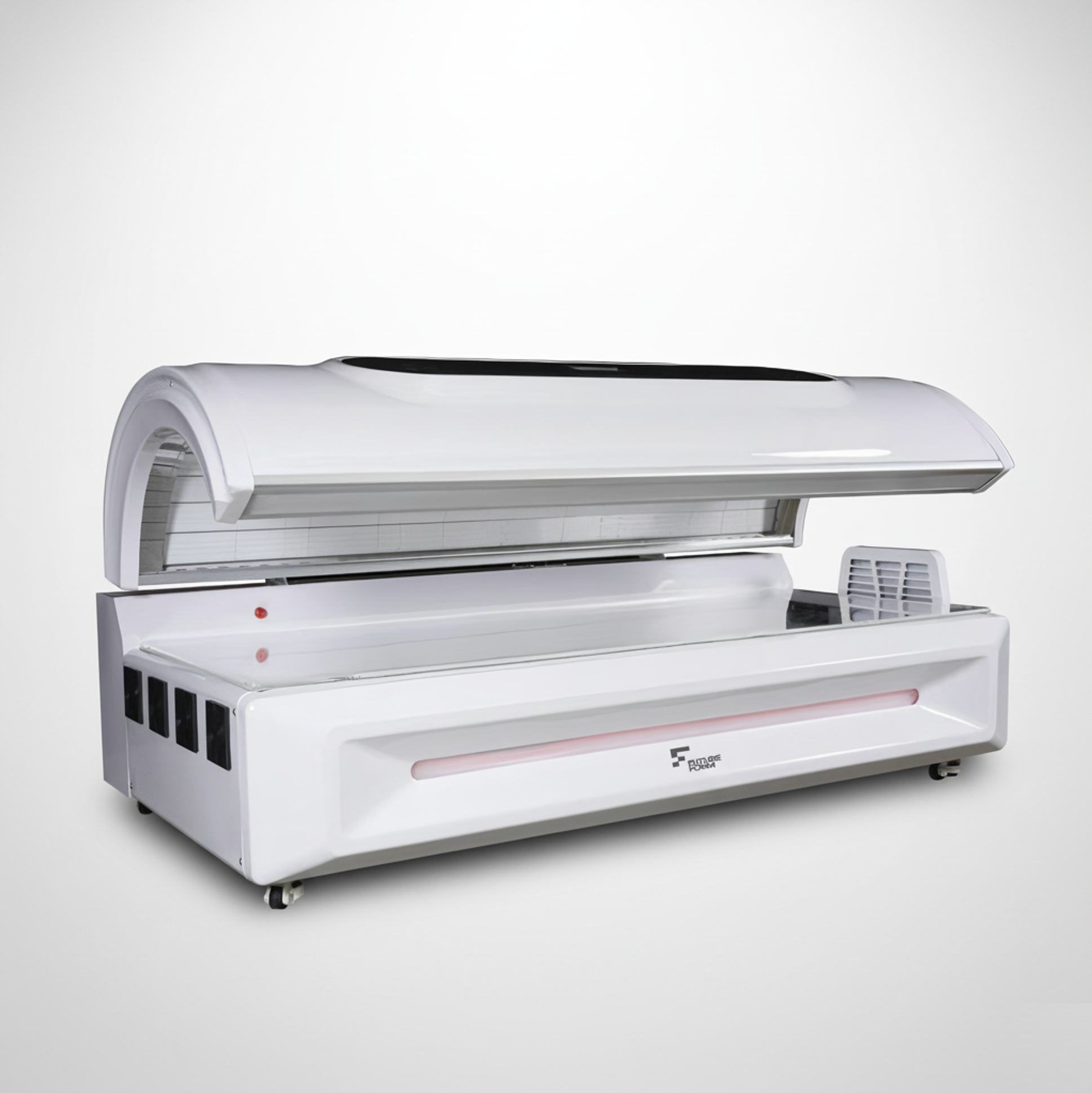

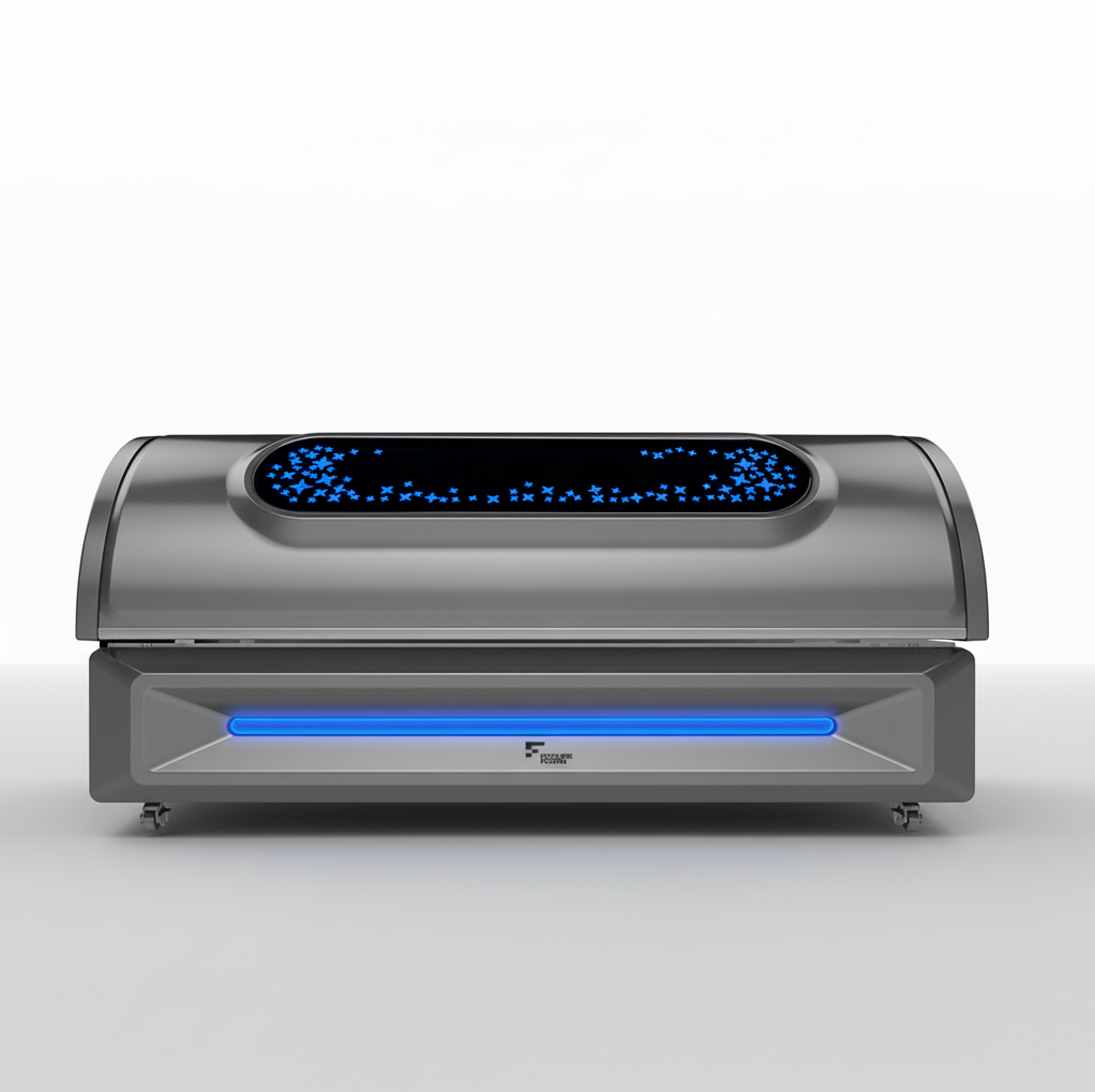

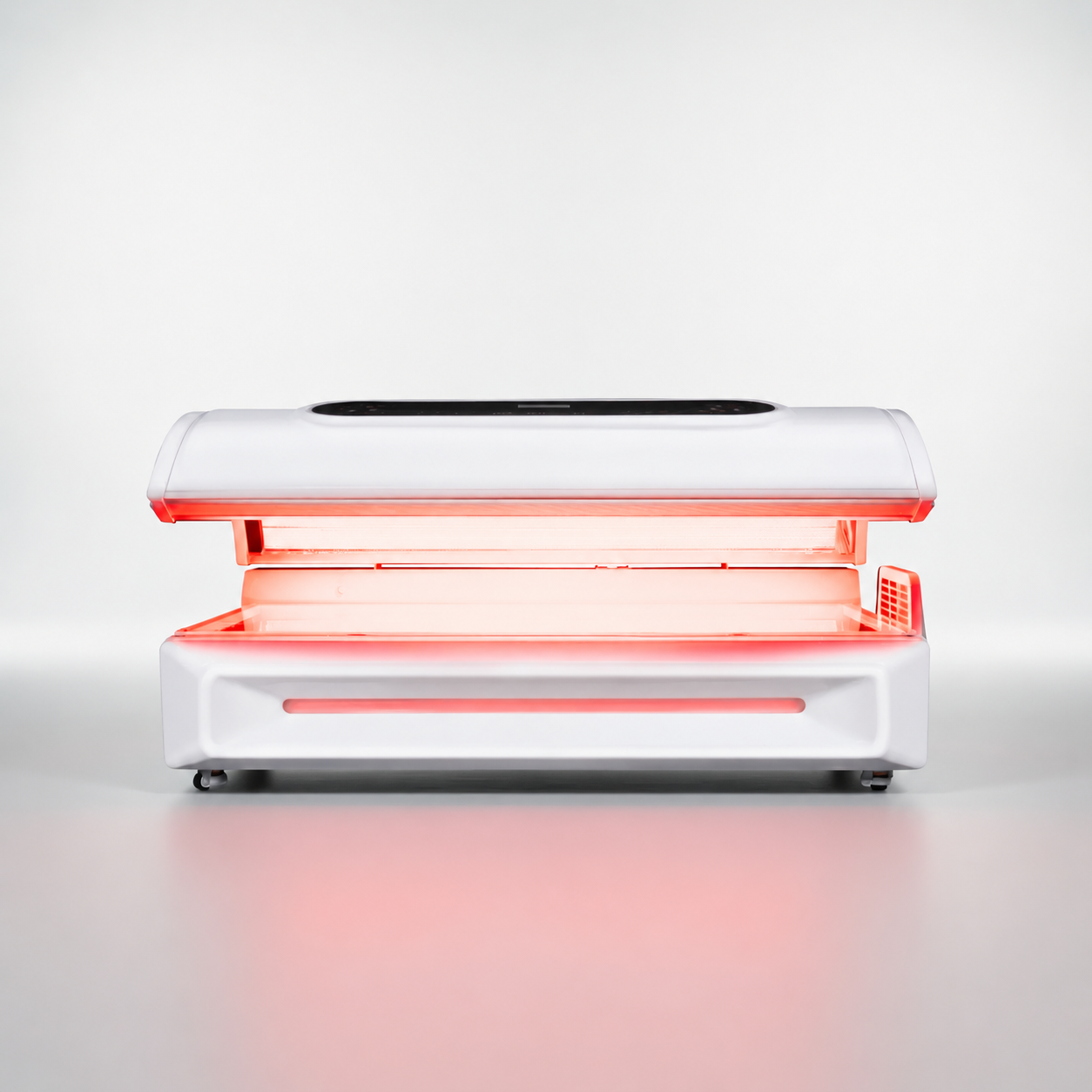

CORE Red and Near-Infrared Light Therapy Bed

The Future Form Core and Core Plus Red and Near-Infrared Light Therapy Beds are professional-grade, full-body systems engineered for advanced wellness, recovery, and beauty treatments. Built for high performance in clinical, spa, and wellness environments, both models are powered by high-output Epistar LEDs delivering five therapeutic wavelengths with independent wavelength control for fully customizable sessions.

The Core model is equipped with 16,560 LEDs, delivering 2000W of LED output power and a total power of 3000W. The Core Plus takes performance even further, with 32,000 LEDs, offering 4200W of LED output power and a total power of 5200W for maximum intensity. Both systems use advanced multi-wavelength therapy, combining red light at 633nm and 660nm with near-infrared light at 810nm, 850nm, and 940nm. This precise wavelength synergy allows for deep tissue penetration, optimized energy delivery, and enhanced cellular interaction. For instance, the 660nm + 850nm combination can penetrate up to 4 mm, while longer wavelengths reach even deeper layers to maximize therapeutic benefits.

In terms of irradiance, the Core model delivers approximately 50 mW/cm², while the Core Plus delivers approximately 100 mW/cm², making it the stronger choice for faster, deeper results. Both models also offer pulsed settings adjustable from 1 to 10,000 Hz, allowing precision control of frequency and duty cycle.

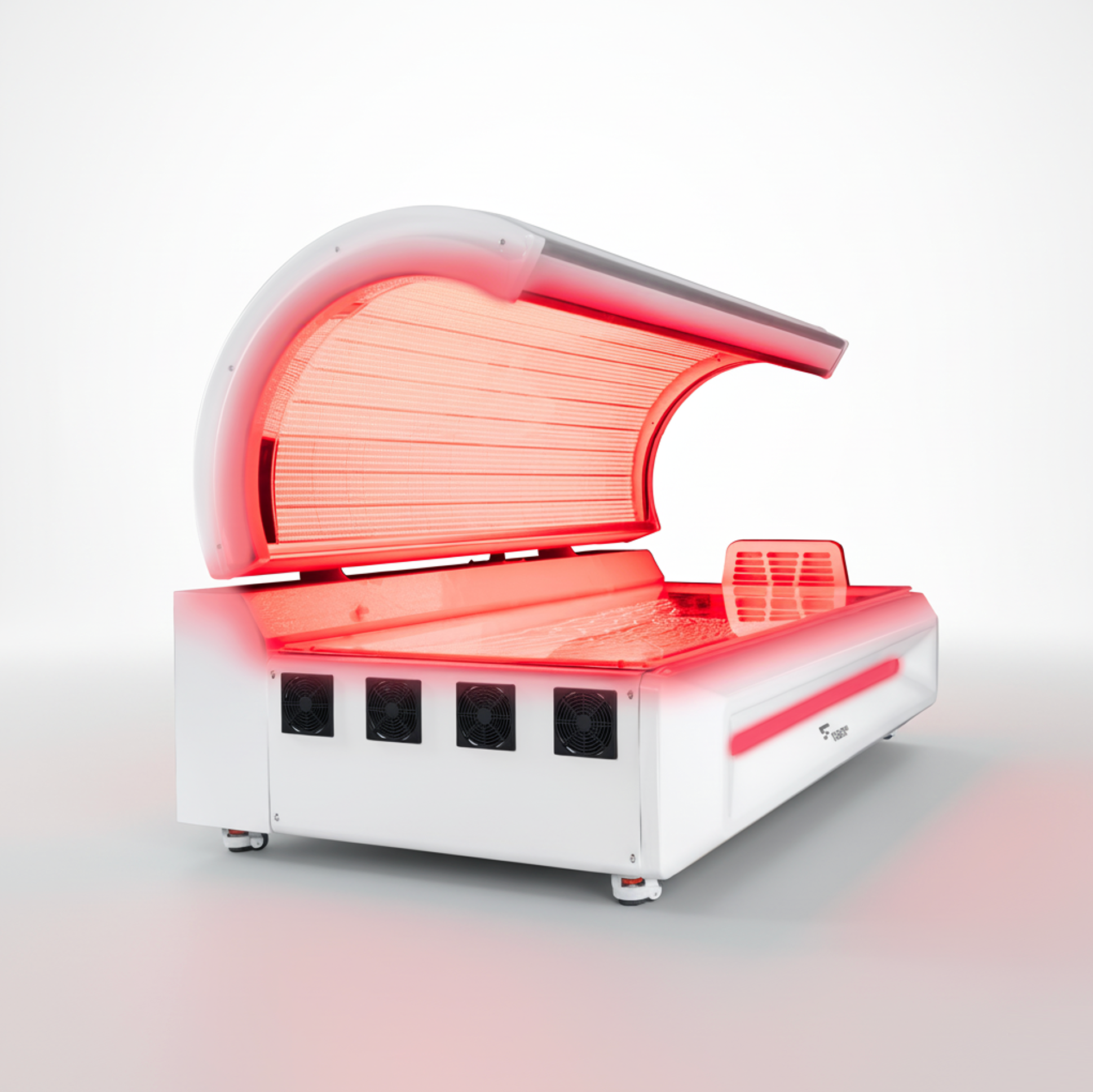

Each bed includes a wireless tablet control system, LCD touchscreen digital interface, integrated customer management software, and Wi-Fi and audio-enabled control. Multiple units can be managed from a single controller, and built-in marketing and user tracking tools are available for professional operators. An intelligent cooling system ensures safe, prolonged use. Each bed also comes with protective goggles to ensure eye safety during treatment sessions. Core/Core Plus beds are T Max Compatible.

The construction features a durable, professional-grade frame with a 100,000-hour LED lifetime. The dimensions are 227.5 × 125 × 96.5 cm (approximately 89.5 × 49 × 38 inches), with a net weight of 350 kg (770 lbs). Voltage is 220V for global compatibility, with a hardwired connection by default (plug option available depending on country requirements).

Third-Party LAB Tested & Certified: RoHS Compliant, CE Marked for Safety and Compatibility, UL, FDA Registered and Listed, FCC Certified, ISO 9001:2015 Certified, TÜV Certified, SGS Skin-Safe (Non-Cytotoxic, Non-Irritating, Non-Sensitizing), EMF Tested, PSE, ensuring maximum safety, quality, and regulatory compliance for professional and consumer use.

Assembly: Delivered fully assembled. For narrow doorways, a video guide is provided to detach the top section for easier entry.

Warranty: 5 years including free spare parts, coverage for reasonable local electrician costs, and video or written repair guides. Defective parts are shipped at no cost, with smaller components sent via express delivery and larger ones by sea freight. Warranty claims are answered within 24 to 48 hours.

Performance benefits include enhanced cellular rejuvenation, optimized coverage for improved treatment depth and saturation, increased photon scattering and redirection for better energy absorption, and deep tissue reach across all skin layers.

Delivery and Costs: Delivery time is approximately 30 to 50 business days. All costs are included, with no additional import taxes, and shipping is completely free.

Download product specifications here.
