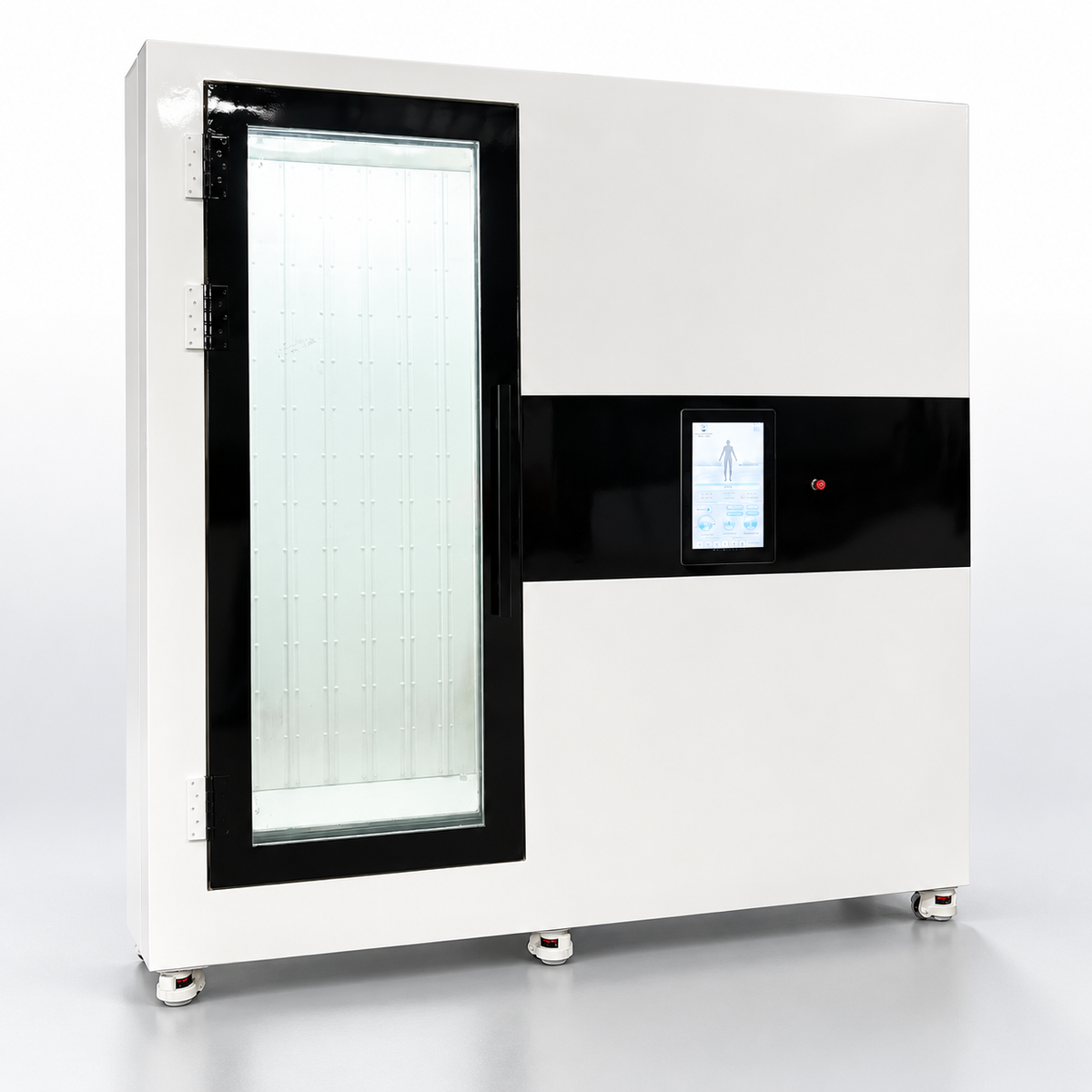

Electric Cryotherapy Chamber: Nitrogen-Free, down to -130°C

A walk-in, whole-body cryotherapy chamber cooled entirely by electricity. There is no liquid nitrogen anywhere in the system. The chamber reaches -130°C with a refrigeration compressor, so the user stands in dry, cold air with the head inside the chamber and breathes normal room air throughout the session.

Most cryotherapy units on the market are cooled with liquid nitrogen. This chamber is not. The difference matters for safety, running costs and how the session feels:

• No nitrogen in the air you breathe. Nitrogen units cool by releasing nitrogen vapour, which displaces oxygen. That is why they need oxygen sensors, ventilation and strict supervision. An electric chamber cools the air with a refrigeration system, so the oxygen level in the chamber stays the same as the room.
• No nitrogen deliveries or storage. No tanks to refill, no supplier contracts and no pressurised containers on site. The chamber runs on mains power and a water supply.
• Dry cold. No nitrogen mist, no wet clothing and no drying needed after the session.
• Whole body, head included. Many nitrogen cryosaunas keep the head outside the cabin for safety reasons. Because the air here stays breathable, the whole body, including the head, is exposed to the cold.

Electric chambers cost more to buy than nitrogen units. They need an industrial-grade ultra-low-temperature refrigeration system to reach -130°C, rather than relying on a supply of liquid nitrogen. In return, there are no ongoing nitrogen costs: the chamber runs on electricity and water only.

The refrigeration system, compressor cooling, controls and treatment chamber are built into one unit. Many electric chambers are split systems with a separate compressor unit and cooling tower, sometimes in a dedicated machine room. This chamber needs none of that: on site it only has to be connected to power, a water inlet and a drain.

Single-Compressor Auto-Cascade Refrigeration

Reaching -130°C normally takes several compressors working in stages. This chamber uses auto-cascade technology: one German-made Bitzer compressor and an HFC mixed refrigerant cool the chamber in several temperature stages within a single circuit. With fewer compressors and fewer components, there are fewer parts that can fail. The compressor sits on vibration-isolating mounts to keep vibration away from the chamber.

Direct Wall Cooling, No Fans

The cold is produced by the chamber walls themselves rather than blown in by fans. There is no forced airflow and no cold draught inside the chamber. The cold spreads evenly through radiation and contact with the cold surfaces, so the user feels still, deep cold rather than wind.

Insulated Chamber with Thermal-Break Frame

The chamber walls combine a high-density foam core with layers of aerogel insulation. The outer shell and door frame use a thermal-break construction, so there is no direct cold path to the outside. This keeps the outer surface dry and free of condensation and frost, and means the compressor needs to run less to hold the temperature.

Water-Cooled Compressor

The compressor is cooled with water. Two setups are available:

• Direct water (standard): connects to a normal tap water inlet and a gravity drain. Flow is about 5 L/min (0.3 m³/h) while the compressor runs. A built-in valve stops the water automatically when cooling is not needed. Recommended inlet water temperature: 4–40°C.
• Circulating water (optional, extra cost): water circulates between the chamber and a separate cooling water storage unit, so no drain is needed.

The compressor shuts down automatically if the water supply stops or the flow becomes too low.

• Wearable vital-signs monitor tracking heart rate, blood oxygen, body temperature and body position during the session, shown live on the operator tablet
• Oxygen monitoring
• Emergency stop buttons
• Precise temperature control, set anywhere from 0°C down to -130°C
• Session length set to 3 or 5 minutes

• 15.6-inch touchscreen on the chamber
• Remote control tablet for the operator
• Remote technical support through the tablet
• Simple use: set the temperature and start the compressor; the chamber cools down on its own
• Scheduled pre-cooling: program the start time up to 24 hours ahead, so the chamber is at temperature when staff arrive
• Interior LED light strip
• Delivered fully assembled, no on-site build
• Protective gloves and boots included
• Maintenance: wipe up the defrost water with a towel or mop

• Type: Electric whole-body cryotherapy chamber, nitrogen-free
• Capacity: 1 person
• Temperature range: 0°C to -130°C
• Cool-down time: about 130 minutes from room temperature (25°C) to -130°C
• Session length: 3 or 5 minutes
• External dimensions: 2230 × 830 × 2370 mm
• Internal dimensions: 800 × 570 × 2000 mm
• Weight: 800 kg
• Compressor: 1 × Bitzer, water-cooled
• Refrigeration: single-unit auto-cascade, HFC mixed refrigerant (R245fa, R125, R23, R14, R740)
• Cooling capacity: 2.4 kW (8,188 BTU)
• Cooling method: direct wall cooling, no fans
• Insulation: high-density foam core with aerogel layers, thermal-break shell and door frame
• Design: all-in-one, refrigeration and controls built in; no separate compressor unit or machine room
• Noise level: 60–70 dB during operation
• Power: 8 kW rated, 15 kW maximum
• Voltage: 380 V, 3-phase (other voltages on request)
• Electrical connection: hardwired (L1 + L2 + L3 + ground), no plug
• Operating environment: humidity below 85%

• 380 V 3-phase supply with a 40 A D-type breaker and an inlet cable of at least 10 mm²
• Tap water inlet and drain (standard direct-water setup), or space for the optional circulating water unit
• Floor space for the 2230 × 830 mm footprint, 2370 mm ceiling clearance plus access, and a floor that carries 800 kg

The chamber size, colour, finish, logo and software interface can be customised to your requirements. Contact us for options and pricing.

Built for professional settings: recovery and performance centres, sports clubs, gyms, spas, wellness clinics and longevity studios.

Whole-body cryotherapy exposes the body to extreme cold. Sessions should always be run by trained staff, with the operator present for the full session. Users must wear dry protective clothing on the hands, feet and ears (gloves and boots are included), and remove all jewellery and wet clothing. Not suitable for people who are pregnant or who have cardiovascular conditions, uncontrolled high blood pressure, cold allergy, Raynaud's syndrome or open wounds. Users with any health condition should consult a healthcare provider first.

This is a wellness device, not a medical device. It is not intended to diagnose, treat, cure, or prevent any disease or medical condition.
